Cranes and Special Trucks

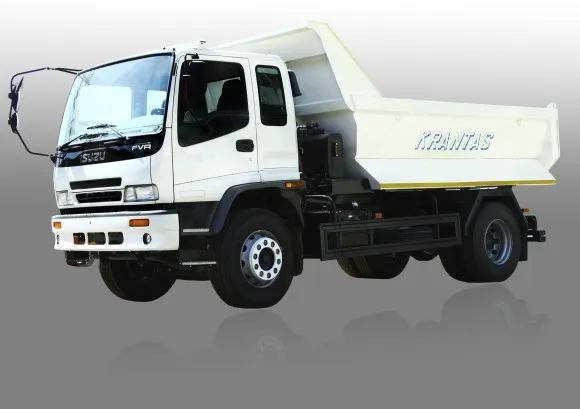

ISUZU shassisida samosval-9 t (4x2)
В наличии
<jadval>
<tbody>
<tr>
<td> <strong>Ism</strong> </td>
<td> <strong>Birlik</strong> </td>
<td> <strong>Shassisi</strong> </td>
</tr>
<tr>
<td> <strong>1. Qiymat ko'rsatkichlari</strong></td>
<td> <strong> </strong> </td>
<td> <strong> </strong> </td>
</tr>
<tr>
<td> Avtomobil markasi </td>
<td> </td>
<td> ISUZU FVR </td>
</tr>
<tr>
<td> Avtomobil toifasi </td>
<td> </td>
<td> N3 </td>
</tr>
<tr>
<td> G'ildirakning joylashishi </td>
<td> </td>
<td> 4x2 </td>
</tr>
<tr>
<td> To'liq og'irlikdagi maksimal tezlik, </td> dan kam emas
<td> Km/soat </td>
<td> 80 </td>
</tr>
<tr>
<td> To'liq massaga ega avtomobilning tashqi burilish radiusi, </td> dan ortiq emas
<td> mm </td>
<td> 10000±100 </td>
</tr>
<tr>
<td> <strong>2. Dvigatel parametrlari</strong></td>
<td> <strong> </strong> </td>
<td> <strong> </strong> </td>
</tr>
<tr>
<td> </td> yozing
<td> </td>
<td> To'rt taktli turbo quvvatli dizel </td>
</tr>
<tr>
<td> Model </td>
<td> </td>
<td> ISUZU 6HH1-S </td>
</tr>
<tr>
<td> Silindr hajmi </td>
<td> sm3 </td>
<td> 8226 </td>
</tr>
<tr>
<td> Maksimal quvvat </td>
<td> kVt/hp (aylanish) </td>
<td> 147/200 (2850) </td>
</tr>
<tr>
<td> Dvigatel joylashuvi </td>
<td> </td>
<td> Old bo'ylama </td>
</tr>
<tr>
<td> <strong>3. Og'irlik ko'rsatkichlari</strong></td>
<td> </td>
<td> </td>
</tr>
<tr>
<td> Avtomobilning yalpi og'irligi, </td> dan oshmasligi kerak
<td> kg </td>
<td> 15100 </td>
</tr>
<tr>
<td> Old o'qning maksimal yuki </td>
<td> kg </td>
<td> 6300 </td>
</tr>
<tr>
<td> Maksimal orqa aks yuki </td>
<td> kg </td>
<td> 10500 </td>
</tr>
<tr>
<td> Yuk mashinasi shassisining og'irligi </td>
<td> kg </td>
<td> 4880 ± 25 </td>
</tr>
<tr>
<td> Yuk bilan birga ustki inshootning ruxsat etilgan og'irligi </td>
<td> kg </td>
<td> 10220 </td>
</tr>
<tr>
<td> <strong>4. Umumiy o‘lchamlar</strong></td>
<td> </td>
<td> </td>
</tr>
<tr>
<td> G'ildirak bazasi </td>
<td> mm </td>
<td> 3900 ± 50 </td>
</tr>
<tr>
<td> Old trek </td>
<td> mm </td>
<td> 1990 ± 50 </td>
</tr>
<tr>
<td> Orqa yo'l </td>
<td> mm </td>
<td> 1855 ±50 </td>
</tr>
<tr>
<td> Avtomobil kengligi </td> dan oshmaydi
<td> mm </td>
<td> 2500 </td>
</tr>
<tr>
<td> Avtomobil balandligi </td> dan oshmasligi kerak
<td> mm </td>
<td> 3000 </td>
</tr>
<tr>
<td> Avtomobil uzunligi </td> dan oshmasligi kerak
<td> mm </td>
<td> 8000 </td>
</tr>
<tr>
<td> Avtomobil shassisining kengligi </td>
<td> mm </td>
<td> 2465±50 </td>
</tr>
<tr>
<td> Avtomobil shassisining balandligi </td>
<td> mm </td>
<td> 2670±100 </td>
</tr>
<tr>
<td> Avtomobil shassisining uzunligi </td>
<td> mm </td>
<td> 6770±100 </td>
</tr>
<tr>
<td> <strong>5. Shinalar parametrlari</strong> </td>
<td> </td>
<td> </td>
</tr>
<tr>
<td> Old </td>
<td> </td>
<td> Yagona </td>
</tr>
<tr>
<td> Orqa </td>
<td> </td>
<td> Egizak </td>
</tr>
<tr>
<td> <strong>6. Ishonchlilik ko'rsatkichlari</strong></td>
<td> </td>
<td> </td>
</tr>
<tr>
<td> Katta ta'mirdan oldin o'rnatilgan resurs (taxminiy) </td>
<td> 1*106m </td>
<td> 200 </td>
</tr>
<tr>
<td> Kafolat kilometri uchun nosozliklar orasidagi o'rtacha vaqt </td>
<td> 1*106m </td>
<td> 50 </td>
</tr>
<tr>
<td> Kafolat </td>
<td> </td>
<td> 12 oy </td>
</tr>
</tbody>
</jadval>
от 50 000 сум
KAMAZ shassisida CST-32 yuk krani (8x4)
В наличии
<jadval>
<tbody>
<tr>
<td style="text-align: left;"> Asosiy shassi (g'ildirak joylashuvi) </td>
<td style="text-align: right;">
<p> KAMAZ (8x4) </p>
</td>
</tr>
<tr>
<td style="text-align: left;"> Dvigatel quvvati, ot kuchi </td>
<td style="text-align: right;"> 300 </td>
</tr>
<tr>
<td style="text-align: left;"> Yuklash hajmi, t </td>
<td style="text-align: right;"> 32 </td>
</tr>
<tr>
<td style="text-align: left;"> Ko'tarish balandligi, m: </td>
<td style="text-align: right;"> </td>
</tr>
<tr>
<td style="text-align: left;"> asosiy bom bilan </td>
<td style="text-align: right;"> 30 </td>
</tr>
<tr>
<td style="text-align: left;"> jib bilan </td>
<td style="text-align: right;"> 37 </td>
</tr>
<tr>
<td style="text-align: left;"> Maks. bo'sh ilgakni ko'tarish (tushirish) tezligi, m/min </td>
<td style="text-align: right;"> 7,2-42,9 </td>
</tr>
<tr>
<td style="text-align: left;"> Sayohat tezligi, km/soat </td>
<td style="text-align: right;"> 60 </td>
</tr>
<tr>
<td style="text-align: left;"> Tashish holatidagi umumiy o'lchamlar, mm </td>
<td style="text-align: right;"> </td>
</tr>
<tr>
<td style="text-align: left;"> Uzunlik </td>
<td style="text-align: right;"> 11710 </td>
</tr>
<tr>
<td style="text-align: left;"> balandlik </td>
<td style="text-align: right;"> 2500 </td>
</tr>
<tr>
<td style="text-align: left;"> kengligi </td>
<td style="text-align: right;"> 3953 </td>
</tr>
<tr>
<td style="text-align: left;"> Asosiy bom bilan yalpi og'irlik, t </td>
<td style="text-align: right;"> 23,72 </td>
</tr>
<tr>
<td style="text-align: left;"> Kafolat </td>
<td style="text-align: right;"> 1 yil </td>
</tr>
</tbody>
</jadval>
от 50 000 сум

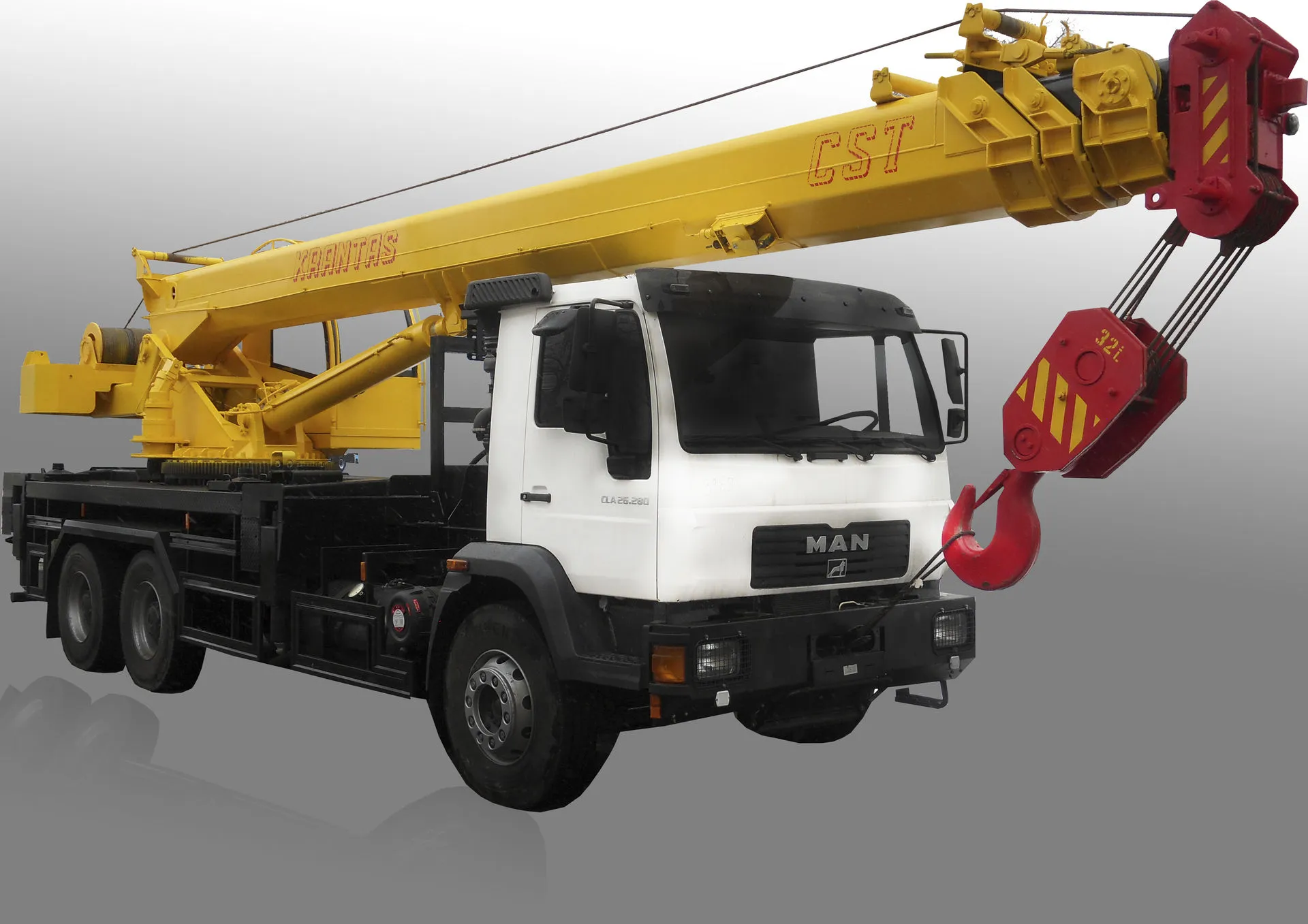

MAN shassisida CST-32 yuk krani (6x4)
В наличии
<jadval>
<tbody>
<tr>
<td style="text-align: left;"> Asosiy shassi (g'ildirak joylashuvi) </td>
<td style="text-align: right;">
<p> MAN (6x4) </p>
</td>
</tr>
<tr>
<td style="text-align: left;"> Dvigatel quvvati, ot kuchi </td>
<td style="text-align: right;"> 300 </td>
</tr>
<tr>
<td style="text-align: left;"> Yuklash hajmi, t </td>
<td style="text-align: right;"> 32 </td>
</tr>
<tr>
<td style="text-align: left;"> Ko'tarish balandligi, m </td>
<td style="text-align: right;"> </td>
</tr>
<tr>
<td style="text-align: left;"> asosiy bom bilan </td>
<td style="text-align: right;"> 30 </td>
</tr>
<tr>
<td style="text-align: left;"> jib bilan </td>
<td style="text-align: right;"> 37 </td>
</tr>
<tr>
<td style="text-align: left;"> Maks. bo'sh ilgakni ko'tarish (tushirish) tezligi, m/min </td>
<td style="text-align: right;"> 7,2-42,9 </td>
</tr>
<tr>
<td style="text-align: left;"> Sayohat tezligi, km/soat </td>
<td style="text-align: right;"> 60 </td>
</tr>
<tr>
<td style="text-align: left;"> Tashish holatidagi umumiy o'lchamlar, mm </td>
<td style="text-align: right;"> </td>
</tr>
<tr>
<td style="text-align: left;"> Uzunlik </td>
<td style="text-align: right;"> 11710 </td>
</tr>
<tr>
<td style="text-align: left;"> balandlik </td>
<td style="text-align: right;"> 2500 </td>
</tr>
<tr>
<td style="text-align: left;"> kengligi </td>
<td style="text-align: right;"> 3953 </td>
</tr>
<tr>
<td style="text-align: left;"> Asosiy bom bilan yalpi og'irlik, t </td>
<td style="text-align: right;"> 23,72 </td>
</tr>
<tr>
<td style="text-align: left;"> Kafolat </td>
<td style="text-align: right;"> 1 yil </td>
</tr>
</tbody>
</jadval>
от 50 000 сум

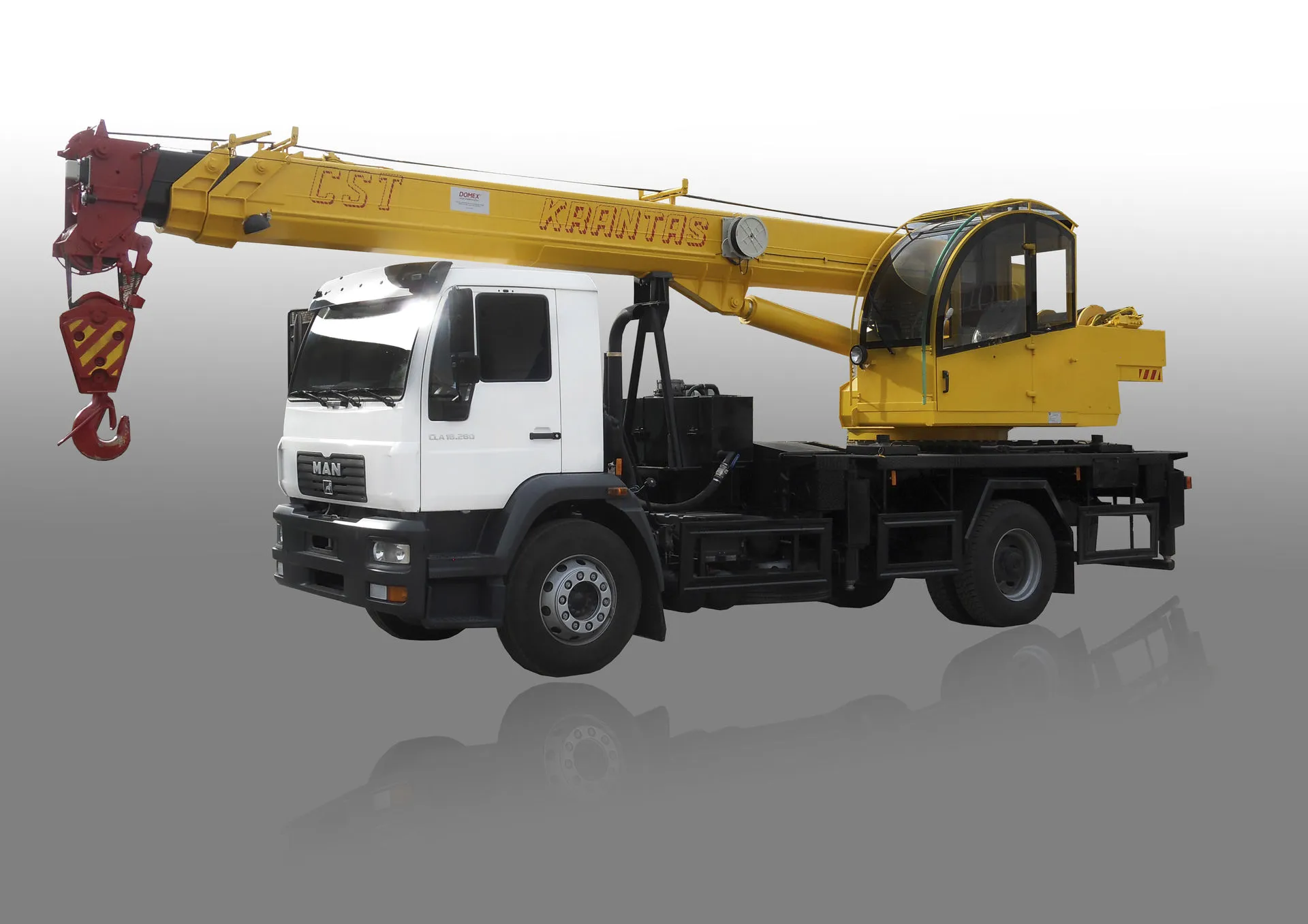

MAN shassisida CST - 16 yuk krani (4x2)
В наличии
<jadval>
<tbody>
<tr>
<td> Ism </td>
<td style="text-align: right;"> Parametrlar </td>
</tr>
<tr>
<td> Asosiy shassi </td>
<td style="text-align: right;"> MAN CLA 18.200 </td>
</tr>
<tr>
<td> G'ildirakning joylashishi </td>
<td style="text-align: right;"> 4x2 </td>
</tr>
<tr>
<td> Dvigatel turi </td>
<td style="text-align: right;"> 4 zarbli turbo quvvatli dizel dvigatel </td>
</tr>
<tr>
<td> Dvigatel modeli </td>
<td style="text-align: right;"> D0836 LFL13-EURO3 </td>
</tr>
<tr>
<td> Silindr hajmi </td>
<td style="text-align: right;"> 6,9 l </td>
</tr>
<tr>
<td> Maks. cheklovchi bilan tezlikni </td>
<td style="text-align: right;"> 89 km/soat </td>
</tr>
<tr>
<td> Ruxsat etilgan yalpi avtomobil og'irligi </td>
<td style="text-align: right;"> 18 000 kg </td>
</tr>
<tr>
<td> Old o'q yuki </td>
<td style="text-align: right;"> 6500 kg </td>
</tr>
<tr>
<td> Orqa aks yuki </td>
<td style="text-align: right;"> 11500 kg </td>
</tr>
<tr>
<td> Yuk ko'tarish qobiliyati </td>
<td style="text-align: right;"> 16 t </td>
</tr>
<tr>
<td> Maksimal yuk ko'tarish qobiliyati. </td> ga erishing
<td style="text-align: right;"> 4,8 t </td>
</tr>
<tr>
<td> Avtokranning yalpi og'irligi </td>
<td> </td>
</tr>
<tr>
<td colspan="2"> Tashish holatidagi umumiy o'lchamlar </td>
</tr>
<tr>
<td> Uzunlik, </td> dan oshmasligi kerak
<td style="text-align: right;"> 10500 mm </td>
</tr>
<tr>
<td> Kenglik, </td> dan oshmasligi kerak
<td style="text-align: right;"> 2500 mm </td>
</tr>
<tr>
<td> Balandligi, </td> dan oshmasligi kerak
<td style="text-align: right;"> 3700 mm </td>
</tr>
</tbody>
</jadval>
от 50 000 сум
MAN shassisida CST-25 yuk krani (6x4)
В наличии
<jadval>
<tbody>
<tr>
<td style="text-align: left;"> Asosiy shassi (g'ildirak joylashuvi) </td>
<td style="text-align: right;"> MAN (6x4) </td>
</tr>
<tr>
<td style="text-align: left;"> Dvigatel quvvati, ot kuchi </td>
<td style="text-align: right;"> 240 </td>
</tr>
<tr>
<td style="text-align: left;"> Yuklash hajmi, t </td>
<td style="text-align: right;"> 25 </td>
</tr>
<tr>
<td style="text-align: left;"> Ko'tarish balandligi, m </td>
<td style="text-align: right;"> </td>
</tr>
<tr>
<td style="text-align: left;"> asosiy bom bilan </td>
<td style="text-align: right;"> 10-21,7 </td>
</tr>
<tr>
<td style="text-align: left;"> jib bilan </td>
<td style="text-align: right;"> 28.2 </td>
</tr>
<tr>
<td style="text-align: left;"> Maks. bo'sh ilgakni ko'tarish (tushirish) tezligi, m/min </td>
<td style="text-align: right;"> 12.2 </td>
</tr>
<tr>
<td style="text-align: left;"> Sayohat tezligi, km/soat </td>
<td style="text-align: right;"> 60 </td>
</tr>
<tr>
<td style="text-align: left;"> Tashish holatidagi umumiy o'lchamlar, mm </td>
<td style="text-align: right;"> </td>
</tr>
<tr>
<td style="text-align: left;"> Uzunlik </td>
<td style="text-align: right;"> 11000 </td>
</tr>
<tr>
<td style="text-align: left;"> Balandlik </td>
<td style="text-align: right;"> 3800 </td>
</tr>
<tr>
<td style="text-align: left;"> Kenglik </td>
<td style="text-align: right;"> 2500 </td>
</tr>
<tr>
<td style="text-align: left;"> Asosiy bom bilan yalpi og'irlik, t </td>
<td style="text-align: right;"> 22 </td>
</tr>
<tr>
<td style="text-align: left;"> Kafolat </td>
<td style="text-align: right;"> 1 yil </td>
</tr>
</tbody>
</jadval>
от 50 000 сум
ISUZU shassisida 5 tonna quvvatga ega kran manipulyatori
В наличии
<jadval>
<tbody>
<tr>
<td style="text-align: left;"> Asosiy shassi </td>
<td style="text-align: left;">
<p> ISUZU N-seriyasi (4x2) </p>
<p> MAN (4x2) </p>
</td>
</tr>
<tr>
<td style="text-align: left;"> Maks. ko'tarish balandligi </td>
<td style="text-align: left;"> 13,35 m </td>
</tr>
<tr>
<td style="text-align: left;"> Maks. Yuklash momenti </td>
<td style="text-align: left;"> 10 t </td>
</tr>
<tr>
<td style="text-align: left;"> Aylanish burchagi </td>
<td style="text-align: left;"> 400° </td>
</tr>
<tr>
<td style="text-align: left;"> Manipulyator dizayn vazni </td>
<td style="text-align: left;"> 1512 kg </td>
</tr>
<tr>
<td style="text-align: left;"> Maksimal kranni ko'tarish quvvati </td>
<td style="text-align: left;"> 5350 </td>
</tr>
<tr>
<td style="text-align: left;"> Asosiy transport vositasini ko'tarish qobiliyati </td>
<td style="text-align: left;"> 9 t </td>
</tr>
<tr>
<td style="text-align: left;"> Maksimal ko'tarish balandligi </td>
<td style="text-align: left;"> 13,35 m </td>
</tr>
<tr>
<td style="text-align: left;"> Maksimal ish radiusi </td>
<td style="text-align: left;"> 11,35 m </td>
</tr>
<tr>
<td style="text-align: left;"> Maksimal tezlik </td>
<td style="text-align: left;"> 80 km/soat </td>
</tr>
<tr>
<td style="text-align: left;"> Kafolat </td>
<td style="text-align: left;"> 1 yil </td>
</tr>
</tbody>
</jadval>
от 50 000 сум
KAMAZ shassisida CST-50 yuk krani (8x4)
В наличии
<jadval sinfi="1-jadval">
<tbody>
<tr>
<td> Asosiy shassi (g'ildirak joylashuvi) </td>
<td style="text-align: right;">
<p> KAMAZ (8x4) </p>
</td>
</tr>
<tr>
<td> Dvigatel quvvati, ot kuchi </td>
<td style="text-align: right;"> 390 </td>
</tr>
<tr>
<td> Yuk ko'tarish qobiliyati, t </td>
<td style="text-align: right;"> 50 </td>
</tr>
<tr>
<td> Ko'tarish balandligi, m </td>
<td style="text-align: right;"> </td>
</tr>
<tr>
<td> asosiy bom bilan </td>
<td style="text-align: right;"> 10-42 </td>
</tr>
<tr>
<td> jib bilan </td>
<td style="text-align: right;"> 50 </td>
</tr>
<tr>
<td> Maks. bo'sh ilgakni ko'tarish (tushirish) tezligi, m/min </td>
<td style="text-align: right;"> 14.2 </td>
</tr>
<tr>
<td> Sayohat tezligi, km/soat </td>
<td style="text-align: right;"> 60 </td>
</tr>
<tr>
<td> Tashish holatidagi umumiy o'lchamlar, mm </td>
<td style="text-align: right;"> </td>
</tr>
<tr>
<td> uzunlik </td>
<td style="text-align: right;"> 12,500 </td>
</tr>
<tr>
<td> balandlik </td>
<td style="text-align: right;"> 3900 </td>
</tr>
<tr>
<td> kengligi </td>
<td style="text-align: right;"> 2500 </td>
</tr>
<tr>
<td> Asosiy bom bilan yalpi og'irlik, t </td>
<td style="text-align: right;"> 42 </td>
</tr>
<tr>
<td> Kafolat </td>
<td style="text-align: right;"> 1 yil </td>
</tr>
</tbody>
</jadval>
от 50 000 сум
MAN shassisida (4x2) ko'tarish quvvati 5 tonna bo'lgan kran manipulyatori
В наличии
<jadval>
<tbody>
<tr>
<td style="text-align: left;"> Asosiy shassi </td>
<td style="text-align: left;">
<p> </p>
<p> MAN (4x2) </p>
</td>
</tr>
<tr>
<td style="text-align: left;"> Maks. ko'tarish balandligi </td>
<td style="text-align: left;"> 13,35 m </td>
</tr>
<tr>
<td style="text-align: left;"> Maks. Yuklash momenti </td>
<td style="text-align: left;"> 10 t </td>
</tr>
<tr>
<td style="text-align: left;"> Aylanish burchagi </td>
<td style="text-align: left;"> 400° </td>
</tr>
<tr>
<td style="text-align: left;"> Manipulyator dizayn vazni </td>
<td style="text-align: left;"> 1512 kg </td>
</tr>
<tr>
<td style="text-align: left;"> Maksimal kranni ko'tarish quvvati </td>
<td style="text-align: left;"> 5350 </td>
</tr>
<tr>
<td style="text-align: left;"> Asosiy transport vositasini ko'tarish qobiliyati </td>
<td style="text-align: left;"> 9 t </td>
</tr>
<tr>
<td style="text-align: left;"> Maksimal ko'tarish balandligi </td>
<td style="text-align: left;"> 13,35 m </td>
</tr>
<tr>
<td style="text-align: left;"> Maksimal ish radiusi </td>
<td style="text-align: left;"> 11,35 m </td>
</tr>
<tr>
<td style="text-align: left;"> Maksimal tezlik </td>
<td style="text-align: left;"> 80 km/soat </td>
</tr>
<tr>
<td style="text-align: left;"> Kafolat </td>
<td style="text-align: left;"> 1 yil </td>
</tr>
</tbody>
</jadval>
от 50 000 сум
KAMAZ shassisida CST-25 yuk krani (6x6)
В наличии
<jadval>
<tbody>
<tr>
<td style="text-align: left;"> Asosiy shassi (g'ildirak joylashuvi) </td>
<td style="text-align: right;"> KAMAZ (6x6) </td>
</tr>
<tr>
<td style="text-align: left;"> Dvigatel quvvati, ot kuchi </td>
<td style="text-align: right;"> 240 </td>
</tr>
<tr>
<td style="text-align: left;"> Yuklash hajmi, t </td>
<td style="text-align: right;"> 25 </td>
</tr>
<tr>
<td style="text-align: left;"> Ko'tarish balandligi, m </td>
<td style="text-align: right;"> </td>
</tr>
<tr>
<td style="text-align: left;"> asosiy bom bilan </td>
<td style="text-align: right;"> 10-21,7 </td>
</tr>
<tr>
<td style="text-align: left;"> jib bilan </td>
<td style="text-align: right;"> 28.2 </td>
</tr>
<tr>
<td style="text-align: left;"> Maks. bo'sh ilgakni ko'tarish (tushirish) tezligi, m/min </td>
<td style="text-align: right;"> 12.2 </td>
</tr>
<tr>
<td style="text-align: left;"> Sayohat tezligi, km/soat </td>
<td style="text-align: right;"> 60 </td>
</tr>
<tr>
<td style="text-align: left;"> Tashish holatidagi umumiy o'lchamlar, mm </td>
<td style="text-align: right;"> </td>
</tr>
<tr>
<td style="text-align: left;"> Uzunlik </td>
<td style="text-align: right;"> 11000 </td>
</tr>
<tr>
<td style="text-align: left;"> Balandlik </td>
<td style="text-align: right;"> 3800 </td>
</tr>
<tr>
<td style="text-align: left;"> Kenglik </td>
<td style="text-align: right;"> 2500 </td>
</tr>
<tr>
<td style="text-align: left;"> Asosiy bom bilan yalpi og'irlik, t </td>
<td style="text-align: right;"> 22 </td>
</tr>
<tr>
<td style="text-align: left;"> Kafolat </td>
<td style="text-align: right;"> 1 yil </td>
</tr>
</tbody>
</jadval>
от 50 000 сум
ISUZU shassisida 18 m yuk mashinasiga o'rnatilgan antenna platformasi (4x2)
В наличии
<jadval>
<tbody>
<tr>
<td> Asosiy shassi </td>
<td> ISUZU 4x2 </td>
</tr>
<tr>
<td> Xizmat ko'rsatish maydoni balandligi </td>
<td> 18 m. </td>
</tr>
<tr>
<td> Ko'tarish balandligi </td>
<td> 17,5 m </td>
</tr>
<tr>
<td> Maksimal kirish </td>
<td> 9,5/6,4 m. </td>
</tr>
<tr>
<td> Beshikning yuk ko'tarish qobiliyati </td>
<td> 80/250 kg. </td>
</tr>
<tr>
<td> Beshikning aylanish burchagi </td>
<td> ±60° </td>
</tr>
<tr>
<td> Ustunning burilish burchagi </td>
<td> 360° </td>
</tr>
<tr>
<td> Ortiqchalar </td>
<td> gidravlik </td>
</tr>
</tbody>
</jadval>
<ul>
<li> Teleskopik bum (asosiy bom + ikkita teleskopik qism) </li>
<li> Bo'lim kengaytmasini zanjirli sinxronlashtirish </li>
<li> Tashish holati uchun avtomatik buklanish tizimi </li>
<li> Shlangi shlanglar va simlar shikastlanishdan himoya qilish uchun bom ichiga o'tkaziladi </li>
<li> Yerdan va beshikdan proportsional elektro-gidravlik boshqaruv </li>
<li> Avtomobil dvigatelini beshikdan ishga tushirish va to‘xtatish </li>
<li> Alyuminiy sirpanmaydigan platformalar </li>
<li> Alyuminiy beshik oʻlchami 1400 x 700 x 1100 mm </li>
<li> Shlangi beshikni tekislash </li>
<li> 4 ta stabilizator qo'llab-quvvatlovchi joylashuv sensori bilan </li>
<li> Beshikdagi quvvat manbai 220 V </li>
<li> Limit yuk cheklovchi </li>
</ul>
от 50 000 сум
ISUZU shassisida CST - 16 yuk krani (4x2)
В наличии
<jadval>
<tbody>
<tr>
<td style="text-align: left;">
Asosiy shassi (g'ildirakning joylashishi)
</td>
<td style="text-align: right;">
ISUZU (4x2)
</td>
</tr>
<tr>
<td style="text-align: left;">
Dvigatel quvvati, ot kuchi
</td>
<td style="text-align: right;">
200
</td>
</tr>
<tr>
<td style="text-align: left;">
Yuk ko'tarish qobiliyati, t
</td>
<td style="text-align: right;">
16
</td>
</tr>
<tr>
<td style="text-align: left;">
Asosiy bom bilan ko'tarish balandligi, m
</td>
<td style="text-align: right;">
9.1-18.4
</td>
</tr>
<tr>
<td style="text-align: left;">
Maks. bo'sh kancani ko'tarish (tushirish) tezligi, m / min
</td>
<td style="text-align: right;">
17
</td>
</tr>
<tr>
<td style="text-align: left;">
Sayohat tezligi, km/soat
</td>
<td style="text-align: right;">
80
</td>
</tr>
<tr>
<td style="text-align: left;">
Tashish holatidagi umumiy o'lchamlar, mm:
</td>
<td style="text-align: right;">
</td>
</tr>
<tr>
<td style="text-align: left;">
Uzunlik
</td>
<td style="text-align: right;">
10000
</td>
</tr>
<tr>
<td style="text-align: left;">
balandlik
</td>
<td style="text-align: right;">
3700
</td>
</tr>
<tr>
<td style="text-align: left;">
kengligi
</td>
<td style="text-align: right;">
2500
</td>
</tr>
<tr>
<td style="text-align: left;">
Asosiy bom bilan yalpi og'irlik, t
</td>
<td style="text-align: right;">
15
</td>
</tr>
<tr>
<td style="text-align: left;">
Kafolat
</td>
<td style="text-align: right;">
1 yil
</td>
</tr>
</tbody>
</jadval>
от 50 000 сум
ISUZU shassisida 22 m yuk mashinasiga o'rnatilgan antenna platformasi (4x2)
В наличии
<ul>
<li> Xizmat ko'rsatish maydoni balandligi – 22,5 m. </li>
<li> Ko'tarish balandligi - 22,0 m. </li>
<li> Maksimal kirish - 9,0/6,1 m. </li>
<li> Beshikning yuk ko'tarish qobiliyati – 80/250 kg. </li>
<li> Beshikning aylanish burchagi ±60° </li>
<li> Ustunning burilish burchagi 360° </li>
<li> Lift yalpi og'irligi 3500 kg bo'lgan shassisga o'rnatilishi mumkin. </li>
</ul>
<p style="text-align: left;"> </p>
<div style="width: 100%; background-image: url('header/tratteggio.jpg'); balandlik: 7px; pastki chet: 10px; chet-usti: 3px;"></div>
<ul>
<li> Teleskopik bom (asosiy bom + 3 teleskopik qism) </li>
<li> Bo'lim kengaytmasini zanjirli sinxronlashtirish </li>
<li> Tashish holati uchun avtomatik buklanish tizimi </li>
<li> Shlangi shlanglar va simlar shikastlanishdan himoya qilish uchun bom ichiga o'tkaziladi </li>
<li> Yerdan va beshikdan proportsional elektro-gidravlik boshqaruv </li>
<li> Avtomobil dvigatelini beshikdan ishga tushirish va to‘xtatish </li>
<li> Alyuminiy sirpanmaydigan platformalar </li>
<li> Alyuminiy beshik oʻlchami 1400 x 700 x 1100 mm </li>
<li> Shlangi beshikni tekislash </li>
<li> 4 ta stabilizator qo'llab-quvvatlovchi joylashuv sensori bilan </li>
<li> Beshikdagi quvvat manbai 220 V </li>
<li> Maksimal yuk cheklovchisi </li>
<li> Salondagi soat hisoblagichi </li>
</ul>
от 50 000 сум
ISUZU shassisida 3 t quvvatga ega kran manipulyatori (4x2)
В наличии
Texnik xususiyatlari <br />
<br />
Asosiy shassi: ISUZU N-seriyasi (4x2)<br />
Maks. ko'tarish balandligi: 11,45 m<br />
Maks. ko'tarish momenti: 4,6 tm<br />
Aylanish burchagi: 390°<br />
Manipulyator dizayn og'irligi: 859 kg<br />
Maks. kranni ko'tarish quvvati: 2675<br />
Asosiy transport vositasining ko'tarish quvvati: 4,5 t<br />
Maks. ko'tarish balandligi: 11,45 m<br />
Maks. ish radiusi: 9,45 m<br />
Maks. tezligi: 80 km/soat<br />
Kafolat: 1 yil
от 50 000 сум
ISUZU shassisida 14,5 m yuk mashinasiga o'rnatilgan antenna platformasi (4x2)
В наличии
<jadval>
<tbody>
<tr>
<td> Asosiy shassi (g'ildirak joylashuvi)<br /> </td>
<td> ISUZU 4x2 </td>
</tr>
<tr>
<td> Xizmat ko'rsatish maydoni balandligi </td>
<td> 14,5 m. </td>
</tr>
<tr>
<td> Ko'tarish balandligi </td>
<td> 14 </td>
</tr>
<tr>
<td> Maksimal kirish </td>
<td> 8,4 m. </td>
</tr>
<tr>
<td> Beshikning yuk ko'tarish qobiliyati </td>
<td> 200 kg. </td>
</tr>
<tr>
<td> Beshikning aylanish burchagi </td>
<td> ±75° </td>
</tr>
<tr>
<td> Ustunning burilish burchagi </td>
<td> 360° </td>
</tr>
<tr>
<td> Ortiqchalar </td>
<td> gidravlik </td>
</tr>
</tbody>
</jadval>
от 50 000 сум
Burg'ulash qazuvchi (chuqur qazuvchi) ISUZU NQR71PL (4x2)
В наличии
<p> Burg'ulash qurilmasi - tuproqda yoki muzda sayoz quduqlar, teshiklar va silindrsimon teshiklarni burg'ulash uchun ishlatiladigan maxsus uskuna. Burg'ilash dastgohlaridan foydalanish ishni sezilarli darajada soddalashtiradi va tezlashtiradi, shuning uchun ular turli xil iqtisodiy faoliyat turlari uchun - teshiklarni qazish, kichik quduqlarni burg'ulash, ustunlar va boshqa tuzilmalarni o'rnatish uchun, asosan vertikal holatda joylashtirilgan va erga mahkamlangan holda faol qo'llaniladi.</p>
<jadval>
<tbody>
<tr>
<td> Ism </td>
<td style="text-align: right;"> Parametrlar </td>
</tr>
<tr>
<td> Asosiy shassi </td>
<td style="text-align: right;"> ISUZU NQR 71PL </td>
</tr>
<tr>
<td> Burg'ulash uskunalari: </td>
<td style="text-align: right;"> </td>
</tr>
<tr>
<td> Burg'ilash diametri </td>
<td style="text-align: right;"> 350 mm </td>
</tr>
<tr>
<td> Maks. burg'ulash chuqurligi </td>
<td style="text-align: right;"> 2,6 m (er sathidan) </td>
</tr>
<tr>
<td> Kran-manipulyator: </td>
<td style="text-align: right;"> </td>
</tr>
<tr>
<td> Maks. ko'tarish qobiliyati </td>
<td style="text-align: right;"> 2 t </td>
</tr>
<tr>
<td> Ko'tarish balandligi (bomning tepasiga) </td>
<td style="text-align: right;"> 9,5 </td>
</tr>
<tr>
<td> </td>
<td> </td>
</tr>
</tbody>
</jadval>
от 50 000 сум

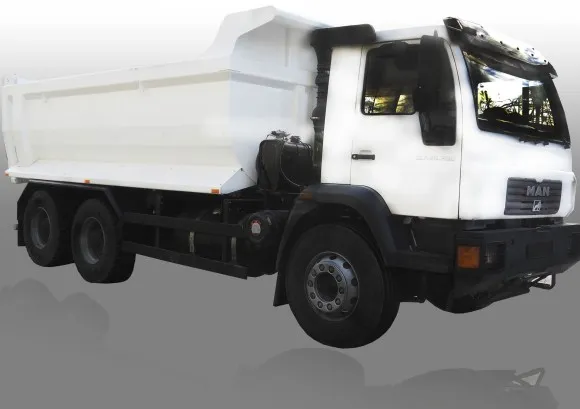

Samosval - MAN shassisida 20 t (6x4)
В наличии
<jadval>
<tbody>
<tr>
<td><span style="font-size: 11pt;"><strong>Ismi</strong></span></td>
<td><span style="font-size: 11pt;"><strong>Birlik</strong></span></td>
<td><span style="font-size: 11pt;"><strong>Shassisi</strong></span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;"><strong>1. Qiymat ko'rsatkichlari</strong></span></td>
<td><span style="font-size: 11pt;"><strong></strong></span></td>
<td><span style="font-size: 11pt;"><strong></strong></span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Avtomobil markasi</span></td>
<td><span style="font-size: 11pt;"></span></td>
<td>MAN 33.360</td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Avtomobil toifasi</span></td>
<td><span style="font-size: 11pt;"></span></td>
<td><span style="font-size: 11pt;">N3</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">G'ildiraklarning joylashishi</span></td>
<td><span style="font-size: 11pt;"></span></td>
<td><span style="font-size: 11pt;">6x4</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">To'liq og'irlikdagi maksimal tezlik, kamida</span></td>
<td><span style="font-size: 11pt;">Km/soat</span></td>
<td><span style="font-size: 11pt;">80</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Brüt og'irligi bo'lgan avtomobilning tashqi burilish radiusi,</span></td> dan ortiq emas
<td><span style="font-size: 11pt;">mm</span></td>
<td><span style="font-size: 11pt;">11000</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;"><strong>2. Dvigatel parametrlari</strong></span></td>
<td><span style="font-size: 11pt;"><strong></strong></span></td>
<td><span style="font-size: 11pt;"><strong></strong></span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Tiri</span></td>
<td><span style="font-size: 11pt;"></span></td>
<td><span style="font-size: 11pt;">Olti silindrli, in-line, to'g'ridan-to'g'ri in'ektsiyali va turbo zaryadlovchili dizel</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Model</span></td>
<td><span style="font-size: 11pt;"></span></td>
<td><span style="font-size: 11pt;">STEYR WD615.95</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Tsilindr almashinuvi</span></td>
<td><span style="font-size: 11pt;">cm3</span></td>
<td><span style="font-size: 11pt;">9726</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Maksimal quvvat</span></td>
<td><span style="font-size: 11pt;">kVt/hp (rpm)</span></td>
<td><span style="font-size: 11pt;">247/360<br />1900</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Dvigatel joylashuvi</span></td>
<td><span style="font-size: 11pt;"></span></td>
<td><span style="font-size: 11pt;">Old bo'ylama</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;"><strong>3. Transmissiya parametrlari</strong></span></td>
<td><span style="font-size: 11pt;"><strong></strong></span></td>
<td><span style="font-size: 11pt;"><strong></strong></span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Vitsiyalar qutisi</span></td>
<td><span style="font-size: 11pt;"></span></td>
<td><span style="font-size: 11pt;">FG (toʻliq)</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Vitsiyalar soni</span></td>
<td><span style="font-size: 11pt;"></span></td>
<td><span style="font-size: 11pt;">9</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Uzatish turi</span></td>
<td><span style="font-size: 11pt;"></span></td>
<td><span style="font-size: 11pt;">Mexanik, orqa o‘qli, majburiy moylash tizimi bilan</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;"><strong>4. Og'irlik ko'rsatkichlari</strong></span></td>
<td><span style="font-size: 11pt;"><strong></strong></span></td>
<td><span style="font-size: 11pt;"><strong></strong></span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Avtomobilning yalpi og'irligi, ortiq emas</span></td>
<td><span style="font-size: 11pt;">kg</span></td>
<td><span style="font-size: 11pt;">25000</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Maksimal old yuk o'qi</span></td>
<td><span style="font-size: 11pt;">kg</span></td>
<td><span style="font-size: 11pt;">7000</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Orqa aravadagi maksimal yuk</span></td>
<td><span style="font-size: 11pt;">kg</span></td>
<td><span style="font-size: 11pt;">26000</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Yuk mashinasi shassisining og'irligi</span></td>
<td><span style="font-size: 11pt;">kg</span></td>
<td><span style="font-size: 11pt;">9600</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Yuk bilan birga ustki inshootning ruxsat etilgan og'irligi</span></td>
<td><span style="font-size: 11pt;">kg</span></td>
<td><span style="font-size: 11pt;">15400</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;"><strong>5. Umumiy o'lchamlar</strong></span></td>
<td><span style="font-size: 11pt;"><strong></strong></span></td>
<td><span style="font-size: 11pt;"><strong></strong></span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Old va oʻrta oʻqning gʻildirak bazasi</span></td>
<td><span style="font-size: 11pt;">mm</span></td>
<td><span style="font-size: 11pt;">3810±100</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">O'rta va orqa akslarning g'ildirak bazasi</span></td>
<td><span style="font-size: 11pt;">mm</span></td>
<td><span style="font-size: 11pt;">1350±100</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Old trek</span></td>
<td><span style="font-size: 11pt;">mm</span></td>
<td><span style="font-size: 11pt;">2030±100</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">orqa ichki yo'lak</span></td>
<td><span style="font-size: 11pt;">mm</span></td>
<td><span style="font-size: 11pt;">1510±100</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Orqa tashqi g'ildiraklar izi</span></td>
<td><span style="font-size: 11pt;">mm</span></td>
<td><span style="font-size: 11pt;">2210±100</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Avtomobilning kengligi</span></td> dan oshmaydi
<td><span style="font-size: 11pt;">mm</span></td>
<td><span style="font-size: 11pt;">2500</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Avtomobil balandligi</span></td> dan oshmaydi
<td><span style="font-size: 11pt;">mm</span></td>
<td><span style="font-size: 11pt;">4000</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Avtomobil uzunligi</span></td> dan oshmaydi
<td><span style="font-size: 11pt;">mm</span></td>
<td><span style="font-size: 11pt;">9000</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Avtomobil shassisining kengligi</span></td>
<td><span style="font-size: 11pt;">mm</span></td>
<td><span style="font-size: 11pt;">2490±50</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Avtomobil shassisining balandligi</span></td>
<td><span style="font-size: 11pt;">mm</span></td>
<td><span style="font-size: 11pt;">3100±100</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Avtomobil shassisining uzunligi</span></td>
<td><span style="font-size: 11pt;">mm</span></td>
<td><span style="font-size: 11pt;">7585±100</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;"><strong>6. Shinalarning ishlashi</strong></span></td>
<td><span style="font-size: 11pt;"><strong></strong></span></td>
<td><span style="font-size: 11pt;"><strong></strong></span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">old</span></td>
<td><span style="font-size: 11pt;"></span></td>
<td><span style="font-size: 11pt;">Yagona</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">orqa</span></td>
<td><span style="font-size: 11pt;"></span></td>
<td><span style="font-size: 11pt;">Ikkita</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;"><strong>7. Ishonchlilik ko'rsatkichlari</strong></span></td>
<td><span style="font-size: 11pt;"><strong></strong></span></td>
<td><span style="font-size: 11pt;"><strong></strong></span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Kapital ta'mirdan oldin o'rnatilgan manba (taxminiy)</span></td>
<td><span style="font-size: 11pt;">1*106m</span></td>
<td><span style="font-size: 11pt;">200</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Kafolat muddati davomida nosozliklar orasidagi oʻrtacha vaqt kilometr</span></td>
<td><span style="font-size: 11pt;">1*106m</span></td>
<td><span style="font-size: 11pt;">50</span></td>
</tr>
<tr>
<td><span style="font-size: 11pt;">Kafolat</span></td>
<td><span style="font-size: 11pt;"></span></td>
<td><span style="font-size: 11pt;">12 oy</span></td>
</tr>
</tbody>
</jadval>
от 50 000 сум
ISUZU shassisida 4,5 t samosval (4x2)
В наличии
<jadval balandligi="1232" kengligi="796">
<tbody>
<tr>
<td>
<strong>Ism</strong>
</td>
<td style="text-align: left;">
<strong>Birlik</strong>
</td>
<td style="text-align: left;">
<strong>Shassisi</strong>
</td>
</tr>
<tr style="text-align: left;">
<td>
<strong>1. Qiymat ko‘rsatkichlari</strong>
</td>
<td>
<strong></strong>
</td>
<td>
<strong></strong>
</td>
</tr>
<tr style="text-align: left;">
<td>
Avtomobil markasi
</td>
<td>
</td>
<td>
ISUZU NQR
</td>
</tr>
<tr style="text-align: left;">
<td>
</td>
<td>
N2
</td>
</tr>
<tr style="text-align: left;">
<td>
G'ildirakni tartibga solish
</td>
<td>
</td>
<td>
4x2
</td>
</tr>
<tr style="text-align: left;">
<td>
To'liq vazn bilan maksimal tezlik, kam emas
</td>
<td>
Km/soat
</td>
<td>
80
</td>
</tr>
<tr style="text-align: left;">
<td>
To'liq og'irlikdagi avtomobilning tashqi burilish radiusi, dan ortiq emas
</td>
<td>
mm
</td>
<td>
8000±100
</td>
</tr>
<tr style="text-align: left;">
<td>
<strong>2. Dvigatel parametrlari</strong>
</td>
<td>
<strong></strong>
</td>
<td>
<strong></strong>
</td>
</tr>
<tr style="text-align: left;">
<td>
Turi
</td>
<td>
</td>
<td>
To'rt zarbali turbo zaryadlangan dizel
</td>
</tr>
<tr style="text-align: left;">
<td>
Model
</td>
<td>
</td>
<td>
ISUZU 4HG1
</td>
</tr>
<tr style="text-align: left;">
<td>
Silindr hajmi
</td>
<td>
sm3
</td>
<td>
4554
</td>
</tr>
<tr style="text-align: left;">
<td>
Maksimal quvvat
</td>
<td>
kVt/hp (rpm)
</td>
<td>
89/121 (3200)
</td>
</tr>
<tr style="text-align: left;">
<td>
Dvigatel joylashuvi
</td>
<td>
</td>
<td>
Old bo'ylama
</td>
</tr>
<tr style="text-align: left;">
<td>
<strong>4. Transmissiya parametrlari</strong>
</td>
<td>
</td>
<td>
</td>
</tr>
<tr style="text-align: left;">
<td>
Vites qutisi
</td>
<td>
</td>
<td>
MYY5T
</td>
</tr>
<tr style="text-align: left;">
<td>
Viteslar soni
</td>
<td>
</td>
<td>
5
</td>
</tr>
<tr style="text-align: left;">
<td>
Vites qutisi turi
</td>
<td>
</td>
<td>
ISUZU, spiral tishli konusli tishli, gipoid tishli.
</td>
</tr>
<tr style="text-align: left;">
<td>
<strong>5. Og'irlik ko'rsatkichlari</strong>
</td>
<td>
</td>
<td>
</td>
</tr>
<tr style="text-align: left;">
<td>
Avtomobilning yalpi og'irligi, ortiq emas
</td>
<td>
kg
</td>
<td>
8000
</td>
</tr>
<tr style="text-align: left;">
<td>
Old o'qning maksimal yuki
</td>
<td>
kg
</td>
<td>
3100
</td>
</tr>
<tr style="text-align: left;">
<td>
Orqa aksning maksimal yuki
</td>
<td>
kg
</td>
<td>
6600
</td>
</tr>
<tr style="text-align: left;">
<td>
Yuk mashinasi shassisining og'irligi
</td>
<td>
kg
</td>
<td>
2405 ± 25
</td>
</tr>
<tr style="text-align: left;">
<td>
Yuk bilan birga ustki tuzilmaning ruxsat etilgan og'irligi
</td>
<td>
kg
</td>
<td>
5595
</td>
</tr>
<tr style="text-align: left;">
<td>
<strong>6. Umumiy o'lchamlar</strong>
</td>
<td>
</td>
<td>
</td>
</tr>
<tr style="text-align: left;">
<td>
G'ildirak bazasi
</td>
<td>
mm
</td>
<td>
3815 ± 50
</td>
</tr>
<tr style="text-align: left;">
<td>
Old trek
</td>
<td>
mm
</td>
<td>
1665 ± 50
</td>
</tr>
<tr style="text-align: left;">
<td>
Orqa iz
</td>
<td>
mm
</td>
<td>
1650 ±50
</td>
</tr>
<tr style="text-align: left;">
<td>
Avtomobilning kengligi dan ortiq emas
</td>
<td>
mm
</td>
<td>
2500
</td>
</tr>
<tr style="text-align: left;">
<td>
Avtomobil balandligi dan oshmaydi
</td>
<td>
mm
</td>
<td>
3000
</td>
</tr>
<tr style="text-align: left;">
<td>
Avtomobil uzunligi dan ortiq emas
</td>
<td>
mm
</td>
<td>
8000
</td>
</tr>
<tr style="text-align: left;">
<td>
Avtomobil shassisining kengligi
</td>
<td>
mm
</td>
<td>
1995±50
</td>
</tr>
<tr style="text-align: left;">
<td>
Avtomobil shassisining balandligi
</td>
<td>
mm
</td>
<td>
3100±100
</td>
</tr>
<tr style="text-align: left;">
<td>
Avtomobil shassisining uzunligi
</td>
<td>
mm
</td>
<td>
6610±100
</td>
</tr>
<tr style="text-align: left;">
<td>
<strong>7. Shinalarning ishlashi</strong>
</td>
<td>
</td>
<td>
</td>
</tr>
<tr style="text-align: left;">
<td>
Old
</td>
<td>
</td>
<td>
Yagona
</td>
</tr>
<tr style="text-align: left;">
<td>
Orqa
</td>
<td>
</td>
<td>
Ikkilik
</td>
</tr>
<tr style="text-align: left;">
<td>
<strong>8. Ishonchlilik ko'rsatkichlari</strong>
</td>
<td>
</td>
<td>
</td>
</tr>
<tr style="text-align: left;">
<td>
Kapital ta'mirdan oldin o'rnatilgan xizmat muddati (taxminiy)
</td>
<td>
1*106 m
</td>
<td>
200
</td>
</tr>
<tr style="text-align: left;">
<td>
Kafolat kilometri uchun nosozliklar orasidagi vaqt
</td>
<td>
1*106 m
</td>
<td>
50
</td>
</tr>
<tr>
<td style="text-align: left;">
Kafolat muddati
</td>
<td style="text-align: left;">
</td>
<td>
12 oy
</td>
</tr>
</tbody>
</jadval>
от 50 000 сум
