10/100/1000M SF-20KM media konvertorining texnik xususiyatlari
Mahsulotlar seriyasi: Optik tolali konvertor
Portlar: 1 10/100/1000BASE-T RJ45 port - 1 1000BASE-X SC port (ST yoki FC ham mavjud)
Oqimni boshqarish: To'liq dupleks: IEEE802.3x / Yarim dupleks: Orqa bosim
Bufer maydoni: 256 KB
To'lqin uzunligi: 1310 nm
Transmitter quvvati: -9~-3dBm
Quvvat manbai: tashqi quvvat adapteri
Kirish: 100~240VAC, 50/60Hz
Chiqish: DC 5V, 1A
Olchamlari: (WxDxH) 26 × 70 × 93 mm
Atrof muhitning ishlashi: 0 ° C dan 50 ° C gacha, 10 ~ 90% RH
Saqlash: -40 ° C dan 70 ° C gacha, RH 5 ~ 90%
Standartlar va protokollar: IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z
Tarmoq mediasi 10/100/1000Base-T: Cat 5 UTP (maksimal 100m)
1000Base-LX: Bir rejimli optik tolali kabel (maksimal 20 km)

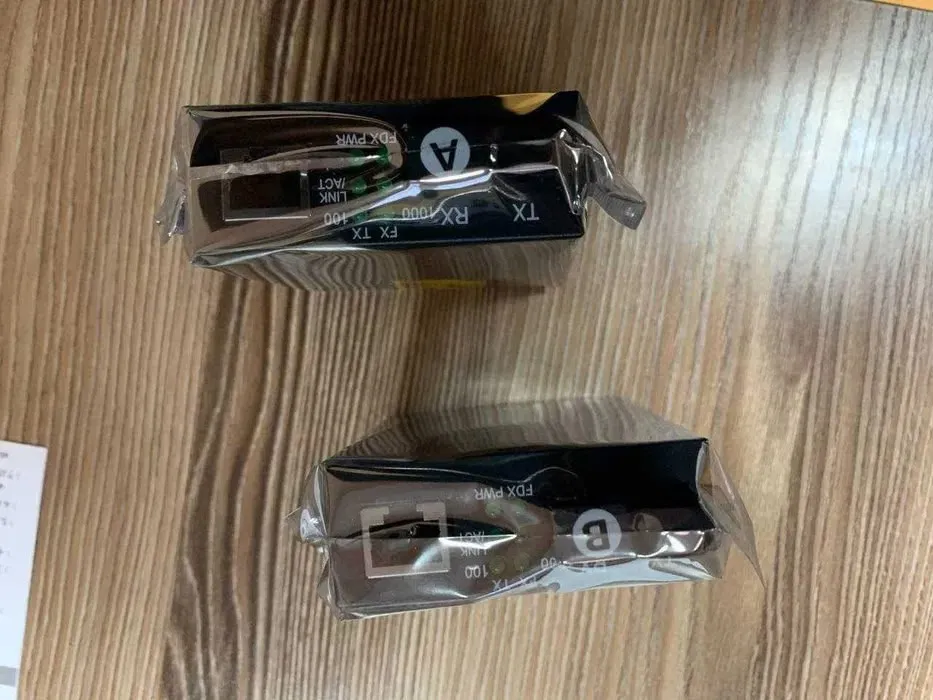

POWER LED indikatori
FX LINK (optik tolali aloqa harakati)
TP LINK1000 (1000M o'ralgan juft ulanish)
TP LINK100 (100M o'ralgan juft ulanish)
TP ACT (Twisted Pair Packet Forwarding Action)
FDX (Ethernet interfeysi rejimi indikatori, ON Full Duplex / OFF:
Yarim) dupleks)
MAC manzili 4K
Elyaf turi: Yagona rejimli tola
Qabul qiluvchining sezgirligi -22 dBm
Quvvat iste'moli 2,5 Vt
Yalpi og'irligi 0,5 kg
FDA ma'qullashi IEC/EN 60825-1 ROHS, Idoralar
