Tokarlik dastgohlari

Torna - bu (tornalik) inqilob jismlari shaklida metall, yog'och va boshqa materiallardan tayyorlangan ish qismlari. Torna stanoklari silindrsimon, konussimon va shaklli yuzalarni qo'pol va pardozlash, ipni kesish, kesish va uchlarini qayta ishlash, burg'ulash, teshiklarni kesish va raybalash va hokazolar uchun ishlatiladi. Ish qismi shpindel tomonidan aylantiriladi, kesuvchi - kesish asbobi - aravachaning siljishi bilan birga harakatlanadi va besleme milidan yoki o'tkazgich vintidan .      Ish qismini o'rnatish uchun moslamani olib yuruvchi milning joylashishiga qarab, yarim avtomatik va avtomatik stanoklar gorizontal va vertikalga bo'linadi. Vertikal bo'lganlar asosan katta massali, katta diametrli va nisbatan kichik uzunlikdagi qismlarga ishlov berish uchun mo'ljallangan.

от 50 000 сум

TMC-8Y Nishabli to'shak stanogi

В наличии

Токарные станки GOLDCNC с осью Y объединяют перемещение по оси Y, полное движение по оси C и высокопроизводительные приводные инструменты для создания универсальных решений по обработке «за один проход» для любого цеха. Легко выполняйте вторичные фрезерные операции на вашем токарном станке, такие как фрезерование, сверление и нарезание резьбы, чтобы повысить производительность и точность. <table> <tbody> <tr> <td colspan="2" rowspan="1">Specifications</td> <td colspan="1" rowspan="1">TMC-8Y</td> </tr> <tr> <td colspan="1" rowspan="4">Bed</td> <td colspan="1" rowspan="1">Bed form and inclination</td> <td colspan="1" rowspan="1">Integral/30o</td> </tr> <tr> <td colspan="1" rowspan="1">Maximum turning diameter of bed</td> <td colspan="1" rowspan="1">Φ650</td> </tr> <tr> <td colspan="1" rowspan="1">Max Part Swing</td> <td colspan="1" rowspan="1">Φ370</td> </tr> <tr> <td colspan="1" rowspan="1">Maximum processing length</td> <td colspan="1" rowspan="1">450</td> </tr> <tr> <td colspan="1" rowspan="6">Spindle</td> <td colspan="1" rowspan="1">Spindle Nose</td> <td colspan="1" rowspan="1">A2-6</td> </tr> <tr> <td colspan="1" rowspan="1">Chuck Size</td> <td colspan="1" rowspan="1">8″（203mm）</td> </tr> <tr> <td colspan="1" rowspan="1">Spindle motor power</td> <td colspan="1" rowspan="1">11KW</td> </tr> <tr> <td colspan="1" rowspan="1">Spindle Max Speed</td> <td colspan="1" rowspan="1">4200rpm</td> </tr> <tr> <td colspan="1" rowspan="1">Spindle hole diameter</td> <td colspan="1" rowspan="1">Φ66</td> </tr> <tr> <td colspan="1" rowspan="1">Bar diameter</td> <td colspan="1" rowspan="1">Φ52</td> </tr> <tr> <td colspan="1" rowspan="7">Feed</td> <td colspan="1" rowspan="1">X/Z axis screw specification</td> <td colspan="1" rowspan="1">3210/4010</td> </tr> <tr> <td colspan="1" rowspan="1">X-axis travel</td> <td colspan="1" rowspan="1">270</td> </tr> <tr> <td colspan="1" rowspan="1">Shaft motor torque</td> <td colspan="1" rowspan="1">11N.M</td> </tr> <tr> <td colspan="1" rowspan="1">X/Z axis rail specification</td> <td colspan="1" rowspan="1">45/45</td> </tr> <tr> <td colspan="1" rowspan="1">Z axis travel</td> <td colspan="1" rowspan="1">610</td> </tr> <tr> <td colspan="1" rowspan="1">Z axis motor torque</td> <td colspan="1" rowspan="1">11 N.M</td> </tr> <tr> <td colspan="1" rowspan="1">X/Z axis connection method</td> <td colspan="1" rowspan="1">Direct</td> </tr> <tr> <td colspan="1" rowspan="1">C axis</td> <td colspan="1" rowspan="1">C axis indexing</td> <td colspan="1" rowspan="1">360°</td> </tr> <tr> <td colspan="1" rowspan="4">Tailstock</td> <td colspan="1" rowspan="1">Socket diameter</td> <td colspan="1" rowspan="1">80</td> </tr> <tr> <td colspan="1" rowspan="1">Socket travel</td> <td colspan="1" rowspan="1">80</td> </tr> <tr> <td colspan="1" rowspan="1">Maximum stroke</td> <td colspan="1" rowspan="1">480</td> </tr> <tr> <td colspan="1" rowspan="1">Sleeve taper</td> <td colspan="1" rowspan="1">Morse 5#</td> </tr> <tr> <td colspan="1" rowspan="1">Dimensions</td> <td colspan="1" rowspan="1">L×W×H</td> <td colspan="1" rowspan="1">1800×1320×1438</td> </tr> <tr> <td colspan="1" rowspan="1">weight</td> <td colspan="1" rowspan="1">N.W/G.W</td> <td colspan="1" rowspan="1">2500/2700kg</td> </tr> </tbody> </table>  GOLDCNC стремится улучшить надежную систему обслуживания, чтобы предоставлять высококачественные продукты и решения для всех сфер производственных пользователей. Ключевые компоненты используют международный первоклассный бренд. Кроме того, мы получили сертификаты. Продукция широко используется в аэрокосмической промышленности, автомобилестроении, судостроении, электронике, производстве пресс-форм и других областях. Токарный станок является предпочтительным оборудованием для обработки валов, дисков, втулок, специальных поверхностей и винтовых заготовок. Свяжитесь с нами, чтобы помочь вам выбрать более подходящее решение для обработки!!!

110 000 сум

CNC torna CAK6180

В наличии

GOLDCNC имеет хорошо развитую систему производства токарных станков для удовлетворения различных требований к обработке. Серия токарных станков с плоской станиной: CA — горизонтальный токарный станок; CAK — токарный станок с ЧПУ; Серия токарных станков с наклонной станиной с ЧПУ: DS — токарный станок с двумя шпинделями; TMC — комбинация токарного и фрезерного станков с ЧПУ; Свяжитесь с нами, чтобы мы помогли вам выбрать более подходящее решение для обработки!!! <table> <tbody> <tr> <td colspan="2" rowspan="1">Specifications</td> <td colspan="1" rowspan="1">CAK6150</td> <td colspan="1" rowspan="1">CAK6163</td> <td colspan="2" rowspan="1">CAK6180</td> <td colspan="2" rowspan="1">CK61100</td> </tr> <tr> <td colspan="1" rowspan="3">Processing Capacity</td> <td colspan="1">Max.swing over bed</td> <td colspan="1">Φ500</td> <td colspan="1">Φ630</td> <td colspan="2">Φ800</td> <td colspan="2">Φ1000</td> </tr> <tr> <td colspan="1" rowspan="1">Max.swing over slide</td> <td colspan="1" rowspan="1">Φ285</td> <td colspan="1" rowspan="1">Φ410</td> <td colspan="2" rowspan="1">Φ470</td> <td colspan="2" rowspan="1">Φ680</td> </tr> <tr> <td colspan="1" rowspan="1">X-axis (lateral) maximum stroke</td> <td colspan="2" rowspan="1">330</td> <td colspan="2" rowspan="1">480</td> <td colspan="2" rowspan="1">560</td> </tr> <tr> <td colspan="1" rowspan="2">Bed</td> <td colspan="1" rowspan="1">Width of bed guideway</td> <td colspan="2" rowspan="1">400</td> <td colspan="2" rowspan="1">600</td> <td colspan="2" rowspan="1">600</td> </tr> <tr> <td colspan="1" rowspan="1">Max.distance between centers</td> <td colspan="2" rowspan="1">1000/1500/2000/3000</td> <td colspan="4" rowspan="1">1500/2000/3000</td> </tr> <tr> <td colspan="1" rowspan="6">Spindle</td> <td colspan="1" rowspan="1">Spindle Head type</td> <td colspan="2" rowspan="1">A2-8</td> <td colspan="2" rowspan="1">C11</td> <td colspan="2" rowspan="1">C11</td> </tr> <tr> <td colspan="1" rowspan="1">Spindle inner hole taper</td> <td colspan="2" rowspan="1">Metric90/1:20</td> <td colspan="2" rowspan="1">Metric1：20</td> <td colspan="2" rowspan="1">Metric120，1:20</td> </tr> <tr> <td colspan="1" rowspan="1">Spindle bore(mm)</td> <td colspan="2" rowspan="1">Φ82/105</td> <td colspan="2" rowspan="1">Φ100</td> <td colspan="2" rowspan="1">Φ100</td> </tr> <tr> <td colspan="1" rowspan="1">Spindle speed(rpm)</td> <td colspan="1" rowspan="1">2000</td> <td colspan="1" rowspan="1">1500</td> <td colspan="4" rowspan="1">Manual 3 gears:40-125；110-350；290-950</td> </tr> <tr> <td colspan="1" rowspan="1">Spindle motor power(kw)</td> <td colspan="1" rowspan="1">7.5</td> <td colspan="1" rowspan="1">11</td> <td colspan="2" rowspan="1">11</td> <td colspan="2" rowspan="1">15</td> </tr> <tr> <td colspan="1" rowspan="1">Manual three jaw chuck size(mm)</td> <td colspan="1" rowspan="1">Φ250</td> <td colspan="1" rowspan="1">Φ320</td> <td colspan="2" rowspan="1">Φ400</td> <td colspan="2" rowspan="1">Φ400</td> </tr> <tr> <td colspan="1" rowspan="2">Servo Axes</td> <td colspan="1" rowspan="1">X axis screw</td> <td colspan="2" rowspan="1">2505</td> <td colspan="2" rowspan="1">3206</td> <td colspan="2" rowspan="1">3206</td> </tr> <tr> <td colspan="1" rowspan="1">Z axis screw</td> <td colspan="2" rowspan="1">4010</td> <td colspan="2" rowspan="1">6310</td> <td colspan="2" rowspan="1">6310</td> </tr> <tr> <td colspan="1" rowspan="7">Working Precision</td> <td colspan="1" rowspan="1">Rapid feed speed(mm/min)</td> <td colspan="1" rowspan="1">X：8000</td> <td colspan="1" rowspan="1">Z：6000</td> <td colspan="1" rowspan="1">X：8000</td> <td colspan="1" rowspan="1">Z：6000</td> <td colspan="1" rowspan="1">X:4000</td> <td colspan="1" rowspan="1">Z：6000</td> </tr> <tr> <td colspan="1" rowspan="1">positioning accuracy (mm)</td> <td colspan="1" rowspan="1">X：0.01</td> <td colspan="1" rowspan="1">Z：0.01</td> <td colspan="1" rowspan="1">X：0.01</td> <td colspan="1" rowspan="1">Z：0.01</td> <td colspan="1" rowspan="1">X：0.01</td> <td colspan="1" rowspan="1">Z：0.01</td> </tr> <tr> <td colspan="1" rowspan="1">Repetitive positioning accuracy(mm)</td> <td colspan="1" rowspan="1">X：0.0075</td> <td colspan="1" rowspan="1">Z：0.010</td> <td colspan="1" rowspan="1">X：0.0075</td> <td colspan="1" rowspan="1">Z：0.010</td> <td colspan="1" rowspan="1">X：0.015</td> <td colspan="1" rowspan="1">Z：0.018</td> </tr> <tr> <td colspan="1" rowspan="1">Roundness(mm)</td> <td colspan="6" rowspan="1">≤0.007</td> </tr> <tr> <td colspan="1" rowspan="1">Diameter consistency</td> <td colspan="6" rowspan="1">≤0.03 mm / 300 mm</td> </tr> <tr> <td colspan="1" rowspan="1">Flatness</td> <td colspan="6" rowspan="1">≤0.02 mm / Φ300 mm</td> </tr> <tr> <td colspan="1" rowspan="1">Surface roughness (steel parts)</td> <td colspan="6" rowspan="1">≤Ra 1.6 mm</td> </tr> <tr> <td colspan="1" rowspan="3">Tail-stock</td> <td colspan="1" rowspan="1">Tail socket diameter(mm)</td> <td colspan="2" rowspan="1">Φ75</td> <td colspan="2" rowspan="1">Φ100</td> <td colspan="2" rowspan="1">Φ100</td> </tr> <tr> <td colspan="1" rowspan="1">Tailstock sleeve stroke (heavy tailstock)(mm)</td> <td colspan="2" rowspan="1">150</td> <td colspan="2" rowspan="1">250</td> <td colspan="2" rowspan="1">250</td> </tr> <tr> <td colspan="1" rowspan="1">Tailstock center cone hole</td> <td colspan="2" rowspan="1">MT5</td> <td colspan="2" rowspan="1">MT6#</td> <td colspan="2" rowspan="1">MT6#</td> </tr> </tbody> </table> Характеристики токарного станка с ЧПУ: Горизонтальный токарный станок с ЧПУ серии GOLDCNC CAK обладает такими характеристиками, как высокая точность, высокая мощность, высокая жесткость и т. д. Его основные компоненты и конструкции были оптимизированы. Станок оснащен системой ЧПУ Gsk980tdc или FANUC OI mate и полностью цифровой сервосистемой переменного тока, оси X и Z используют полузамкнутое управление, шариковый винт использует прецизионный шариковый винт C3, а электрические компоненты используют импортные или отечественные известные бренды, соответствующие сертификации CE или отечественному 3C. Токарный станок с ЧПУ серии CAK6140 является одной из наших самых продаваемых моделей. Модели серии токарных станков с ЧПУ делятся на: CAK6140/CAK6150/CAK616/CAK6166/CAK6180

110 000 сум

CNC torna CAK6150

В наличии

GOLDCNC имеет хорошо развитую систему производства токарных станков для удовлетворения различных требований к обработке. Серия токарных станков с плоской станиной: CA — горизонтальный токарный станок; CAK — токарный станок с ЧПУ; Серия токарных станков с наклонной станиной с ЧПУ: DS — токарный станок с двумя шпинделями; TMC — комбинация токарного и фрезерного станков с ЧПУ; Свяжитесь с нами, чтобы мы помогли вам выбрать более подходящее решение для обработки!!!  <table> <tbody> <tr> <td colspan="2" rowspan="1">Specifications</td> <td colspan="1" rowspan="1">CAK6150</td> <td colspan="1" rowspan="1">CAK6163</td> <td colspan="2" rowspan="1">CAK6180</td> <td colspan="2" rowspan="1">CK61100</td> </tr> <tr> <td colspan="1" rowspan="3">Processing Capacity</td> <td colspan="1">Max.swing over bed</td> <td colspan="1">Φ500</td> <td colspan="1">Φ630</td> <td colspan="2">Φ800</td> <td colspan="2">Φ1000</td> </tr> <tr> <td colspan="1" rowspan="1">Max.swing over slide</td> <td colspan="1" rowspan="1">Φ285</td> <td colspan="1" rowspan="1">Φ410</td> <td colspan="2" rowspan="1">Φ470</td> <td colspan="2" rowspan="1">Φ680</td> </tr> <tr> <td colspan="1" rowspan="1">X-axis (lateral) maximum stroke</td> <td colspan="2" rowspan="1">330</td> <td colspan="2" rowspan="1">480</td> <td colspan="2" rowspan="1">560</td> </tr> <tr> <td colspan="1" rowspan="2">Bed</td> <td colspan="1" rowspan="1">Width of bed guideway</td> <td colspan="2" rowspan="1">400</td> <td colspan="2" rowspan="1">600</td> <td colspan="2" rowspan="1">600</td> </tr> <tr> <td colspan="1" rowspan="1">Max.distance between centers</td> <td colspan="2" rowspan="1">1000/1500/2000/3000</td> <td colspan="4" rowspan="1">1500/2000/3000</td> </tr> <tr> <td colspan="1" rowspan="6">Spindle</td> <td colspan="1" rowspan="1">Spindle Head type</td> <td colspan="2" rowspan="1">A2-8</td> <td colspan="2" rowspan="1">C11</td> <td colspan="2" rowspan="1">C11</td> </tr> <tr> <td colspan="1" rowspan="1">Spindle inner hole taper</td> <td colspan="2" rowspan="1">Metric90/1:20</td> <td colspan="2" rowspan="1">Metric1：20</td> <td colspan="2" rowspan="1">Metric120，1:20</td> </tr> <tr> <td colspan="1" rowspan="1">Spindle bore(mm)</td> <td colspan="2" rowspan="1">Φ82/105</td> <td colspan="2" rowspan="1">Φ100</td> <td colspan="2" rowspan="1">Φ100</td> </tr> <tr> <td colspan="1" rowspan="1">Spindle speed(rpm)</td> <td colspan="1" rowspan="1">2000</td> <td colspan="1" rowspan="1">1500</td> <td colspan="4" rowspan="1">Manual 3 gears:40-125；110-350；290-950</td> </tr> <tr> <td colspan="1" rowspan="1">Spindle motor power(kw)</td> <td colspan="1" rowspan="1">7.5</td> <td colspan="1" rowspan="1">11</td> <td colspan="2" rowspan="1">11</td> <td colspan="2" rowspan="1">15</td> </tr> <tr> <td colspan="1" rowspan="1">Manual three jaw chuck size(mm)</td> <td colspan="1" rowspan="1">Φ250</td> <td colspan="1" rowspan="1">Φ320</td> <td colspan="2" rowspan="1">Φ400</td> <td colspan="2" rowspan="1">Φ400</td> </tr> <tr> <td colspan="1" rowspan="2">Servo Axes</td> <td colspan="1" rowspan="1">X axis screw</td> <td colspan="2" rowspan="1">2505</td> <td colspan="2" rowspan="1">3206</td> <td colspan="2" rowspan="1">3206</td> </tr> <tr> <td colspan="1" rowspan="1">Z axis screw</td> <td colspan="2" rowspan="1">4010</td> <td colspan="2" rowspan="1">6310</td> <td colspan="2" rowspan="1">6310</td> </tr> <tr> <td colspan="1" rowspan="7">Working Precision</td> <td colspan="1" rowspan="1">Rapid feed speed(mm/min)</td> <td colspan="1" rowspan="1">X：8000</td> <td colspan="1" rowspan="1">Z：6000</td> <td colspan="1" rowspan="1">X：8000</td> <td colspan="1" rowspan="1">Z：6000</td> <td colspan="1" rowspan="1">X:4000</td> <td colspan="1" rowspan="1">Z：6000</td> </tr> <tr> <td colspan="1" rowspan="1">positioning accuracy (mm)</td> <td colspan="1" rowspan="1">X：0.01</td> <td colspan="1" rowspan="1">Z：0.01</td> <td colspan="1" rowspan="1">X：0.01</td> <td colspan="1" rowspan="1">Z：0.01</td> <td colspan="1" rowspan="1">X：0.01</td> <td colspan="1" rowspan="1">Z：0.01</td> </tr> <tr> <td colspan="1" rowspan="1">Repetitive positioning accuracy(mm)</td> <td colspan="1" rowspan="1">X：0.0075</td> <td colspan="1" rowspan="1">Z：0.010</td> <td colspan="1" rowspan="1">X：0.0075</td> <td colspan="1" rowspan="1">Z：0.010</td> <td colspan="1" rowspan="1">X：0.015</td> <td colspan="1" rowspan="1">Z：0.018</td> </tr> <tr> <td colspan="1" rowspan="1">Roundness(mm)</td> <td colspan="6" rowspan="1">≤0.007</td> </tr> <tr> <td colspan="1" rowspan="1">Diameter consistency</td> <td colspan="6" rowspan="1">≤0.03 mm / 300 mm</td> </tr> <tr> <td colspan="1" rowspan="1">Flatness</td> <td colspan="6" rowspan="1">≤0.02 mm / Φ300 mm</td> </tr> <tr> <td colspan="1" rowspan="1">Surface roughness (steel parts)</td> <td colspan="6" rowspan="1">≤Ra 1.6 mm</td> </tr> <tr> <td colspan="1" rowspan="3">Tail-stock</td> <td colspan="1" rowspan="1">Tail socket diameter(mm)</td> <td colspan="2" rowspan="1">Φ75</td> <td colspan="2" rowspan="1">Φ100</td> <td colspan="2" rowspan="1">Φ100</td> </tr> <tr> <td colspan="1" rowspan="1">Tailstock sleeve stroke (heavy tailstock)(mm)</td> <td colspan="2" rowspan="1">150</td> <td colspan="2" rowspan="1">250</td> <td colspan="2" rowspan="1">250</td> </tr> <tr> <td colspan="1" rowspan="1">Tailstock center cone hole</td> <td colspan="2" rowspan="1">MT5</td> <td colspan="2" rowspan="1">MT6#</td> <td colspan="2" rowspan="1">MT6#</td> </tr> </tbody> </table>  Характеристики токарного станка с ЧПУ: Горизонтальный токарный станок с ЧПУ серии GOLDCNC CAK обладает такими характеристиками, как высокая точность, высокая мощность, высокая жесткость и т. д. Его основные компоненты и конструкции были оптимизированы. Станок оснащен системой ЧПУ Gsk980tdc или FANUC OI mate и полностью цифровой сервосистемой переменного тока, оси X и Z используют полузамкнутое управление, шариковый винт использует прецизионный шариковый винт C3, а электрические компоненты используют импортные или отечественные известные бренды, соответствующие сертификации CE или отечественному 3C. Токарный станок с ЧПУ серии CAK6140 является одной из наших самых продаваемых моделей. Модели серии токарных станков с ЧПУ делятся на: CAK6140/CAK6150/CAK616/CAK6166/CAK6180

12 000 сум

Gorizontal torna CAK6140

В наличии

161 172 096 сум

CA6140 qo'lda gorizontal torna

В наличии

GOLDCNC имеет хорошо развитую систему производства токарных станков для удовлетворения различных требований к обработке. Серия токарных станков с плоской станиной: CA — горизонтальный токарный станок; CAK — токарный станок с ЧПУ; Серия токарных станков с наклонной станиной с ЧПУ: DS — токарный станок с двумя шпинделями; TMC — токарно-фрезерный станок с ЧПУ; <table> <tbody> <tr> <td colspan="2" rowspan="1">Specifications</td> <td colspan="1" rowspan="1">CA6140</td> <td colspan="1" rowspan="1">CA6150</td> <td colspan="1" rowspan="1">CA6161</td> <td colspan="1" rowspan="1">CA6180</td> </tr> <tr> <td colspan="2" rowspan="1">Max. Workpiece Diameter of Bed</td> <td colspan="1" rowspan="1">400mm</td> <td colspan="1" rowspan="1">500mm</td> <td colspan="1" rowspan="1">610mm</td> <td colspan="1" rowspan="1">800mm</td> </tr> <tr> <td colspan="2" rowspan="1">Max. workpiece diameter of tool holder</td> <td colspan="1" rowspan="1">220mm</td> <td colspan="1" rowspan="1">300mm</td> <td colspan="1" rowspan="1">370mm</td> <td colspan="1" rowspan="1">540mm</td> </tr> <tr> <td colspan="2" rowspan="1">Max.Workpiece Length</td> <td colspan="4" rowspan="1">750/1000/1500/2000/2200/3000/4000mm</td> </tr> <tr> <td colspan="2" rowspan="1">width of bed</td> <td colspan="4" rowspan="1">400mm</td> </tr> <tr> <td colspan="2" rowspan="1">Cutter rod section</td> <td colspan="4" rowspan="1">25×25mm</td> </tr> <tr> <td colspan="1" rowspan="3">Spindle axis</td> <td colspan="1" rowspan="1">Spindle speed range</td> <td colspan="4" rowspan="1">16-1400rpm(24steps)</td> </tr> <tr> <td colspan="1" rowspan="1">Spindle bore</td> <td colspan="4" rowspan="1">52mm 、(80mm)、[105mm]</td> </tr> <tr> <td colspan="1" rowspan="1">Mores</td> <td colspan="4" rowspan="1">No.6(MT6)(Φ90 1:20)[Φ113:20]</td> </tr> <tr> <td colspan="1" rowspan="5">feed</td> <td colspan="1" rowspan="1">Feed Quantity</td> <td colspan="4" rowspan="1">(64 kinds)(for each)</td> </tr> <tr> <td colspan="1" rowspan="1">Metric thread</td> <td colspan="4" rowspan="1">(1-192mm) (44 kinds)</td> </tr> <tr> <td colspan="1" rowspan="1">English thread</td> <td colspan="4" rowspan="1">(1-24tpi) (21kinds)</td> </tr> <tr> <td colspan="1" rowspan="1">Modular thread</td> <td colspan="4" rowspan="1">0.25-48(module 39 kinds)</td> </tr> <tr> <td colspan="1" rowspan="1">Diameter thread</td> <td colspan="4" rowspan="1">1-96DP(37 kinds)</td> </tr> <tr> <td colspan="1" rowspan="3">Tailstock</td> <td colspan="1" rowspan="1">Tailstock spindle travel</td> <td colspan="4" rowspan="1">150mm</td> </tr> <tr> <td colspan="1" rowspan="1">Tailstock spindle diameter</td> <td colspan="4" rowspan="1">75mm</td> </tr> <tr> <td colspan="1" rowspan="1">Taper of tailstock spindle hole</td> <td colspan="4" rowspan="1">Morse NO.5 (MT5)</td> </tr> <tr> <td colspan="2" rowspan="1">Main motor</td> <td colspan="4" rowspan="1">7.5KW(10HP)</td> </tr> <tr> <td colspan="1" rowspan="7">Package dimensions</td> <td colspan="1" rowspan="1">length 750mm</td> <td colspan="4" rowspan="1">2440×1140×1750</td> </tr> <tr> <td colspan="1" rowspan="1">length 1000mm</td> <td colspan="4" rowspan="1">2650×1140×1750</td> </tr> <tr> <td colspan="1" rowspan="1">length 1500mm</td> <td colspan="4" rowspan="1">3150×1140×1750</td> </tr> <tr> <td colspan="1" rowspan="1">length 2000mm</td> <td colspan="4" rowspan="1">3650×1140×1750</td> </tr> <tr> <td colspan="1" rowspan="1">length 2200mm</td> <td colspan="4" rowspan="1">4030×1140×1750</td> </tr> <tr> <td colspan="1" rowspan="1">length 3000mm</td> <td colspan="4" rowspan="1">4800×1140×1750</td> </tr> <tr> <td colspan="1" rowspan="1">length 4000mm</td> <td colspan="4" rowspan="1">4800×1140×1750</td> </tr> <tr> <td colspan="1" rowspan="8">weight</td> <td colspan="1" rowspan="1">Length</td> <td colspan="4" rowspan="1">G.W./N.W.(KG)</td> </tr> <tr> <td colspan="1" rowspan="1">Length 750mm</td> <td colspan="4" rowspan="1">2170 /2060</td> </tr> <tr> <td colspan="1" rowspan="1">Length 1000mm</td> <td colspan="4" rowspan="1">2260/ 2140</td> </tr> <tr> <td colspan="1" rowspan="1">Length 1500mm</td> <td colspan="4" rowspan="1">2420 /2290</td> </tr> <tr> <td colspan="1" rowspan="1">Length 2000mm</td> <td colspan="4" rowspan="1">2790/ 2640</td> </tr> <tr> <td colspan="1" rowspan="1">Length 2200mm</td> <td colspan="4" rowspan="1">2940/ 2790</td> </tr> <tr> <td colspan="1" rowspan="1">Length 3000mm</td> <td colspan="4" rowspan="1">3450/ 3300</td> </tr> <tr> <td colspan="1" rowspan="1">Length 4000mm</td> <td colspan="4" rowspan="1">3750/ 3600</td> </tr> </tbody> </table> Характеристики горизонтального токарного станка: Горизонтальный токарный станок подходит для внутренней и внешней токарной обработки, конической и других вращающихся поверхностей, метрической, модульной и дюймовой резьбы, а также сверления и протягивания масляного паза. Станина токарного станка шире, чем у обычного станка, обладает высокой жесткостью, направляющая поверхность после высокочастотной закалки с высокой прочностью. Легко управляется, одна ручка для управления довольно удобна. Обладает высокой жесткостью как в конструкции, так и в передаточных частях, высокий процент использования мощности делает резку станка легкой. Свяжитесь с нами, чтобы помочь вам выбрать более подходящее решение для обработки!!!

11 000 сум

Mashina asbobi kzh1832

В наличии

G'ildirakli stanoklar temir yo'l transportining harakatlanuvchi tarkibining g'ildirak juftlarini aylantirish uchun mo'ljallangan: avtomobillar, lokomotivlar, elektrovozlar va teplovozlar. Ushbu turdagi asbob-uskunalar yangi g'ildirak guruhlarini ishlab chiqarishda va ish paytida eskirganlarini tiklashda prokat profili, gardish va ichki uchi bo'ylab qattiq va bog'langan g'ildiraklarni burish uchun ishlatiladi.     Birinchi avlod g'ildirak stanoklari nafaqat g'ildiraklarni, balki g'ildirak juft akslarini, shuningdek, har qanday joylashuvning tormoz disklarini ham qayta ishlashlari mumkin. Shu maqsadda g'ildirak tornasida ikkita qo'llab-quvvatlash tizimi mavjud. Og'ir ishlov berish rejimlari uchun asbob to'g'ridan-to'g'ri yuqori qo'llab-quvvatlovchi slaydga o'rnatiladi. G'ildirak markaziga yaqinroq joylashgan joylarni qayta ishlash tortiladigan asbob ushlagich yordamida amalga oshirildi.     Yangi modifikatsiyadagi jihozlar o'q qutisi podshipniklarini yechmasdan g'ildiraklarni burish, shuningdek, o'q rulmanlari uchun o'qlar va o'rindiqlarni qayta ishlash imkonini beradi. Bundan tashqari, ishlov berishning tozaligi uchun cheklangan talablar bilan g'ildirak juftlarining o'qlarini qayta ishlash mumkin. Shina ostidagi g'ildirak markazining o'tiradigan joyi kerakli pürüzlülüğü ta'minlash uchun kauchukga o'xshash elastik materialdan tayyorlangan maxsus asbob bilan ishlov beriladi.    Eskirgan g'ildirak juftlarini lokomotiv, vagon, teplovoz yoki elektrovozning aravalari ostidan tashqariga chiqmasdan burish pol osti g'ildirak stanoklarida tortish elektr dvigatelidan to'g'ridan-to'g'ri g'ildirak juftining o'qida joylashgan tortish reduktorining boshqariladigan uzatmasi orqali amalga oshiriladi. Bunda g'ildirak jufti harakatlanuvchi tarkibning og'irligidan tushiriladi va relslar ustida ko'tariladi.

700 000 сум

Mashina 16K20

В наличии

Vintli kesish stanogi IZH250, 1A616, 16B16KP, 16K20, 1K62, 16V20, 1V62G, 1V625M, 1M63, 163, DIP300, 16K40, DIP400,&nbs;&nbs; 1N65, 165

200 000 сум

CNC bilan 16A20F3 mashinasi

В наличии

CNC torna stanogi 16B16T1S1, 16A20F3, 16K20F3, 16K30F3, 16M30F3, 1740RF3, RT755F3

350 000 сум

Mashina 1512

В наличии

Vertikal torna dastgohi 1510, 1512, 1531, 1512F3, 1516, 1541, 1516F3, 1525, 1553, 1525F3, 1L532, 1540, 1550, 1563,

450 000 сум

Torna stanogi 16k20

В наличии

Texnik xususiyatlari Ishlab chiqarilgan mamlakat    Rossiya Holati    Ishlangan CNC Yo'q Tavsif Ishlayapti, ulangan, keling va ishlayotganini ko'rishingiz mumkin. Texnik xususiyatlari: Ish qismining maksimal uzunligi, mm.    1500 Ish qismining maksimal diametri, mm.     karavot ustida    450 yuqoridagi yordam    240 to'shakda chuqurchaga yuqorida    650 To'shakdagi chuqurchaning uzunligi, mm.    240 Shpindeldagi teshik diametri, mm.    82 To'sarning maksimal balandligi, mm.    25 Shpindel tezligi diapazoni, rpm.    20-1600 To'qmoq nayzasining zarbasi, mm.    180 Uzunlamasına/ko'ndalang uzatmalar soni    50/50 Asosiy elektr dvigatel quvvati, kVt.    7,5 Gabarit o‘lchamlar, mm     uzunligi    2900 kengligi    1230 balandligi    1480 Og'irligi, kg,     2900 dan ortiq emas

от 50 000 сум

Torna 1k62

В наличии

1K62 rusumli vintni kesish stanogi turli xil torna operatsiyalarini bajarish uchun mo'ljallangan, shu jumladan ipni kesish: metrik, dyuymli, modulli, pitch va 3/8", 7/16" qadamli Arximed spirali; 8; 10 va 12 mm. Ishlash shartlari - GOST 15150-69 bo'yicha UHL-4. Qattiqlashtirilgan ish qismlarini qayta ishlash uchun vintni kesish 1K62 stanogidan foydalanish mumkin, chunki dastgoh mili uning qattiqligini ta'minlaydigan maxsus podshipniklarga o'rnatiladi. Turli materiallarni burish ishlov berishning aniqligini o'zgartirmasdan zarba yuki bilan amalga oshirilishi mumkin. Mashinaning asosiy haydovchisining yuqori quvvati, asosiy harakat va besleme kinematik zanjirlarining barcha bo'g'inlarining yuqori qat'iyligi va mustahkamligi, tebranish qarshiligi, keng diapazondagi tezliklar va uzatmalar 1K62 vint kesish stanogida karbid va mineral-keramika asboblari bilan yuqori samarali kesish imkonini beradi. 1K62 dastgohi frontal stanok bo'lib, ya'ni katta diametrli nisbatan qisqa ish qismlarini qayta ishlash imkonini beradi. Torna dastgohining orqa nurining dizayni uning ko'ndalang siljishiga imkon beradi, buning natijasida mashina sayoz konuslarni qayta ishlashga qodir. Orqa nurni va tayanchning pastki qismini maxsus qulf bilan ulash mumkin, bu ba'zan orqa nur bilan burg'ulashda va tayanchdan nurning mexanik harakatidan foydalanganda talab qilinadi. 1K62 stanogiga quyidagi turg'un tayanchlarni o'rnatish mumkin: o'rnatish diametri 20-80 mm bo'lgan harakatlanuvchi va mahkamlangan, o'rnatish diametri 20-130 mm. Harakatni bosh ustundan vites qutisiga uzatish uchun ishlatiladigan viteslar 1K62 mashinasida almashtirilishi mumkin. 1K62 mashina vagonining uzunlamasına harakati yotoqning oldingi rafida o'rnatilgan maxsus to'xtash bilan cheklanishi mumkin. Shunday qilib, o'rnatilgan to'xtash bilan qo'llab-quvvatlash tezligi 250 mm / min dan oshmasligi kerak. To'shak ustiga o'rnatilganda ish qismining maksimal diametri 400 mm. 1K62 torna dastgohida ishlov berilishi mumkin bo'lgan novda maksimal diametri 45 mm. 1K62 mashinasi 23 ish mil tezligiga ega (minimal - 12,5 rpm, maksimal - 2000 rpm). Asosiy haydovchi sifatida 1450 rpm tezlikda 10 kVt quvvatga ega qisqa tutashgan asenkron vosita ishlatiladi. Shpindel tezligi, shuningdek, aravachaning uzunlamasına va ko'ndalang uzatilishining qiymatlari vites qutisi viteslarini almashtirish orqali sozlanadi (mil tezligini va vagonning uzatilishini sozlash uchun turli boshqaruv tutqichlari ishlatiladi). Vagonning tez harakatlanishini ta'minlash uchun 1K62 stanogida qo'shimcha asenkron vosita qo'llaniladi. Uning quvvati 1410 rpm aylanish tezligida 1,0 kVt. 1K62 stanogi dvigatellarni uzoq muddatli haddan tashqari yuklanishdan himoya qiluvchi termal relelar, shuningdek, qisqa tutashuvlardan himoya qiluvchi sigortalar bilan jihozlangan. 1K62 stanogining konstruktiv xususiyatlari - u ishonchli, bardoshli, tebranishga chidamli, yuqori quvvatli asosiy haydovchi bilan jihozlangan - mashinadan yuqori tezlikda ham, yuqori quvvatda kesish uchun ham teng foydalanish imkonini beradi. 1K62 stanogining dizayni ish qismini qayta ishlashning kerakli qattiqligi va yuqori aniqligini ta'minlaydigan shpindelni o'rnatish uchun maxsus podshipniklarni o'z ichiga oladi. GOST 8-82 ga ko'ra, 1K62 stanogi H aniqlik sinfiga tegishli. Qayta ishlashning aniqligi zarba yuklari ostida ham ta'minlanadi. 1K62 stanogi o'zining sifati va ishonchliligi hamda texnik xizmat ko'rsatish qulayligining ajoyib uyg'unligi tufayli kichik va individual ishlab chiqarishda eng mashhurlaridan biridir. Tokarlik stanogida diametri 250 mm bo‘lgan uch jag‘li o‘z-o‘zidan markazlashtiruvchi shtutser yoki diametri 400 mm bo‘lgan to‘rt jag‘li shtutserdan foydalanish mumkin. 1K62 vintni kesish stanogi ish sifati va texnik xizmat ko'rsatish qulayligining ajoyib kombinatsiyasi bilan ajralib turadi.

от 50 000 сум

Torna NL 2000BSY

В наличии

<h3>Y o'qi bilan NL2000</h3>  Yuqori samarali Smart NL seriyali torna markazlari juda aniq, moslashuvchan va ishonchli ma'lumotlarni qayta ishlashni ta'minlaydi.  ■ Y o'qi murakkab shakllarni qayta ishlash imkonini beradi. ■ Yuqori shpindel quvvati yuqori kesish qobiliyatini ta'minlaydi. ■ O'rnatilgan pastki shpindelli vosita tez tezlashish/sekinlashuvni ta'minlaydi. ■ Moslashuvchan ishlov berish uchun asosiy va pastki shpindelning sinxron boshqaruvi. ■ Yuqori momentli servo boshqariladigan quyruq ish qismini sozlash vaqtini qisqartiradi.  Narxga yetkazib berish, uskunani sozlash, oʻqitish, 1 yillik kafolat kiradi

2 014 651 200 сум

Torna NL6000M

В наличии

<ul> <li>SMART liniyasidagi eng kuchli model - NL6000M</li> <li>5143 Nm momentgacha ishlab chiqadigan vites qutisi bilan 55 kVt quvvatli kuchli dvigatel</li> <li>Qayta ishlash uzunligi 750 dan 3200 mm gacha</li> <li>VMT85 haydovchi asboblar bloki - 15 kVtgacha quvvat</li> <li>CNC stend FANUC 0i-TF Plus (15") + qo'lda ko'rsatmalar</li> <li>Maks. burilish diametri -  900 mm.</li> <li>Maks. burilish uzunligi     - 2200 mm</li> </ul>

3 273 808 200 сум

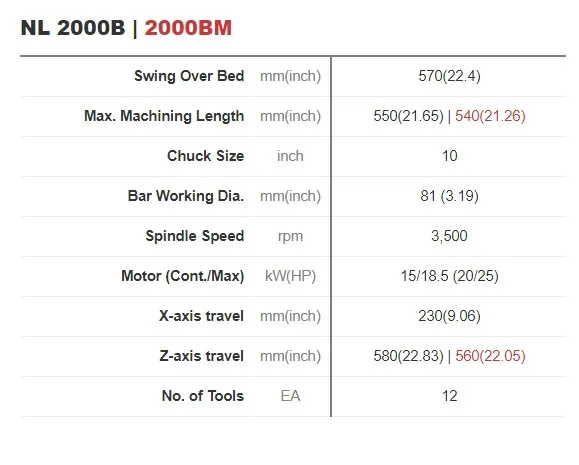

Torna NL 2000BM

В наличии

NL2000 seriyasi  <h3>NL2000/M/B/BM</h3>  Yuqori unumdor Smart NL seriyali torna markazlari oʻta aniq, moslashuvchan va ishonchli maʼlumotlarni qayta ishlashni kafolatlaydi.  ■ O'z sinfidagi eng yuqori ish mil tezligi.  ■ 45° eğimli moment trubkasi va yuqori qattiqlikdagi ishlov berish uchun keng slaydni yo'naltiruvchi.  ■ Qattiq quymadan yasalgan keng quti yo'riqnomalari og'ir yuklarda kesish imkonini beradi.  ■ Tez indekslash uchun yuqori momentli AC servo motor: 0,15 sek/qadam ■ Ajoyib tez aylanish tezligi: 30 m/min [1181 ipm] (Z o'qi) Narxga yetkazib berish, sozlash, o‘qitish, 1 yillik kafolat kiradi

1 699 861 950 сум

Torna NL3000BLM

В наличии

SKM NL 2500/3000 seriyali torna markazlari og'ir yuk* ostida aylanadigan jismlar: vallar, o'qlar, gardishlar, halqalar va boshqalar kabi qismlarni yuqori quvvatli, aniq va samarali burish uchun mo'ljallangan. Qiya yotqizilgan 45˚ konstruksiyaning yuqori qattiqligi, kuchli shpindelli (ikki bosqichli uzatmalar qutisi)1630 N*m gacha (milli dvigatel 22/35 kVt) va slayd qo'llanmalarining kombinatsiyasi yuqori quvvatli kesish va qattiq po'latdan yasalgan qismlarni qattiq holatda ishlov berish bilan muvaffaqiyatli birlashtirish imkonini beradi58> HRC, shu bilan birga7-sifatning yuqori aniqligi va 8-9-sinflarning pürüzlülüğü

2 014 651 200 сум

Panelni yopish mashinasi M-515B

В наличии

Batafsil tavsif Minimal egrilik radiusi 20 mm bo'lgan to'g'ri chiziqli va egri chiziqli (konkav, konveks) profilli panellar uchun PVX, ABS, tabiiy va sintetik shpon asosidagi chiziqlar shaklida yoki qalinligi 0,3 dan 3 mm gacha bo'lgan rulonlardan tayyorlangan. Ushbu mashina shkaf mebellarini ishlab chiqarish bilan shug'ullanadigan ishlab chiqarish korxonalari uchun, shuningdek, egri qismlar ustunlik qiladigan individual buyurtmalar uchun oqilona tanlovdir. Mashina oddiy va ishonchli ishlaydi. Tezlikni sozlash    Smooth     Qirra materialining kengligi    10-50 mm. Qirra materialining qalinligi    0,3-3 mm. Minimal qismning egrilik radiusi    20 mm. Qirrali materialning oziqlanish tezligi   1-18 m/min. Quvvatli isitgich    1,80 kVt. Pnevmatik tizimdagi ish bosimi    4-5 kg/sm2 Dvigatel quvvati    0,37 kVt. Umumiy quvvat sarfi    2,17 kVt. Og'irligi    150 kg. Gabarit o'lchamlari    1500×1000×1180 mm

19 038 630 сум

GS526U vintli qirqish stanogi

В наличии

Mashinalar turli burilish operatsiyalarini bajarish va iplarni kesish uchun mo'ljallangan: metrik, modul, dyuym, qadam. GS526 modeli mashinasining belgilanishi qo'shimcha indekslarni oladi: "B1", "B2" va boshqalar - asosiy texnik xususiyatlarni o'zgartirganda; "U" - mashinani o'rnatilgan tezkor harakatlantiruvchi vosita va vites qutisidagi almashtiriladigan viteslarni almashtirmasdan bir dyuymga 11 va 19 ipli iplarni kesish imkoniyatini ta'minlaydigan besleme qutisi bilan apron bilan jihozlashda; "C" - dastgohni burg'ulash, frezalash ishlarini bajarish va dastgoh aravachasiga o'rnatilgan qismlarga turli burchaklardagi iplarni kesish uchun mo'ljallangan burg'ulash va frezalash moslamasi bilan jihozlashda; "B" - to'shakda ishlov berishning maksimal diametri - 630 mm va aravacha - 420 mm bo'lgan mashinaga buyurtma berishda; "A" - yotoq yo'riqnomalarining o'zgartirilgan profiliga ega mashinaga buyurtma berishda; "G" - yotoqda chuqurchaga ega bo'lgan mashinaga buyurtma berishda; "K" - yopiq orqa maydonga ega mashinaga buyurtma berishda; "L" - 0,02 mm bo'lgan ko'ndalang yo'l bo'linmasining qiymati bo'lgan mashinaga buyurtma berishda; "M" - vagonning yuqori qismini mexanizatsiyalashgan qo'zg'aysanli mashinaga buyurtma berishda; "C1" ("Fagor"), "C2" ("SKB IS"), "C3" ("SINO") va boshqalar - turli xil raqamli ko'rsatkich qurilmalari va chiziqli o'zgartirish konvertorlari bo'lgan mashinaga buyurtma berishda. "RC" - raqamli indekslash moslamasi va chiziqli siljish konvertorlari bo'lgan va shpindel tezligini bosqichsiz tartibga soluvchi mashinaga buyurtma berishda; "E" - "CE" belgisiga ega bo'lgan va Evropa Ittifoqi ko'rsatmalarining xavfsizlik talablariga javob beradigan mashinani etkazib berishda. GS526 modelidagi mashinalar markazlararo masofa (ICD) 1000 mm, GS526-01 versiyasi 1500 mm ICD, GS526-02 versiyasi 2000 mm, GS526-03 versiyasi ICD 3000 mm C/IP terminlari bilan ishlab chiqariladi. (vaqtinchalik saqlash ombori terminali), Incoterms ma'lumotlariga ko'ra - 2010.

697 136 000 сум
